Product Details:
Payment & Shipping Terms:
|
| Product Name: | 12M511 Insulated Aluminium Roller Shutter Machine Shutter Door Roll Forming Machine | Raw Material: | Galvalume, Galvanized, PPGI |
|---|---|---|---|
| Working Speed: | 30 M/min - 50 M/min High Speed | Material Thickness: | 0.3 Mm - 0.8 Mm |
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| High Light: | automatic rolling shutter machine,door shutter roll forming machine |
||
12M511 Insulated Aluminium Roller Shutter Machine Shutter Door Roll Forming Machine
This model is the “big brother” model, catering to larger domestic openings to provide insulation. It has the option of vented slats to allow airflow when at full extension meaning that dependent upon the time of year, it can be used to either reduce heat loss or increase airflow whilst also providing security. They are also used as “high quality” curtains and block out nearly 100% of all light – ideal for those of you living in big cities or busy towns.
The canopy where the shutter rolls into can come as a square or rounded option depending on your preference.
Comes in 7 standard colours: White, Brown, Cream, Fir Green, Grey, Silver or Black.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.6 mm - 1.0 mm |
| 3 | Working Speed | 30-50 m/min |
| 4 | Roller Station | 12 Stations |
| 5 | Dimension (L*W*H) | 5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 | Electrical Control System | PLC (can be customized) |
| 8 | Drive Motor Power | 5 KW |
| 9 | Hydraulic Station Power | 5 KW |
| 10 | Power Supply | 380V, 60HZ, 3 PHASES(can be customized) |
| 11 | Cutting Accuracy | ± 1 mm |
| 12 | Driving Mode | Gear Wheel |
| 13 | Material of Shaft | 60 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Components and Technical Specification
Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

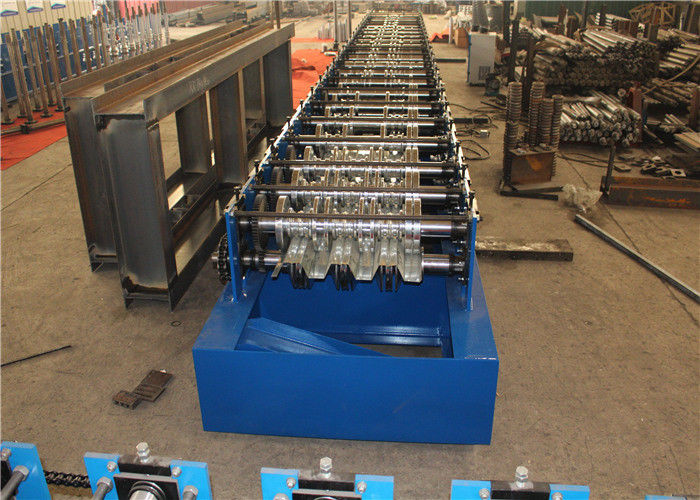

Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta
Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.
Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
