|Control System:||PLC||Product Name:||1220/1250mm 2 Sizes In 1 Floor Deck Roll Forming Machine With 1.5mm Thickness|
|Raw Material:||Galvanized||Cutting Blade Material:||Cr12Mov With Quench HRC58-62°|
deck floor roll forming machine,
steel sheet making machine

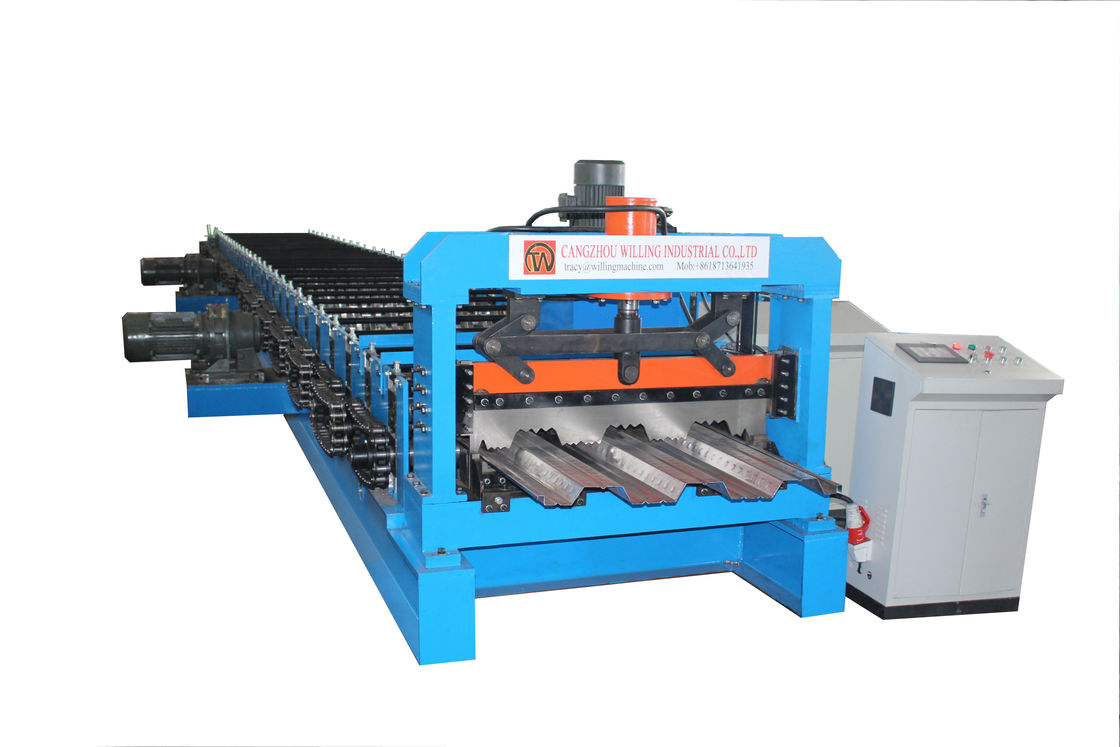

1220/1250mm 2 Sizes In 1 Floor Deck Roll Forming Machine With 1.5mm Thickness
1. Our Deck Roll Forming Machine advantage
a. one machine can produce 2 or 3 different width
b. big motor 15kwx2
c heavy duty 1.5mm thinckness
2. Equipment Detailed Parameters:
|Width of the raw material||1220/1250mm|
|3||Rows of rollers||28 rows|
Main motor 15kwx2
|6||Thickness of raw material||0.8-1.5mm|
|8||Diameter of shaft||￠90mm|
|Voltage||380V 50Hz 3phases|
|10||Big frame||350H steel|
4. Components and Technical Specification
A. Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
B. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

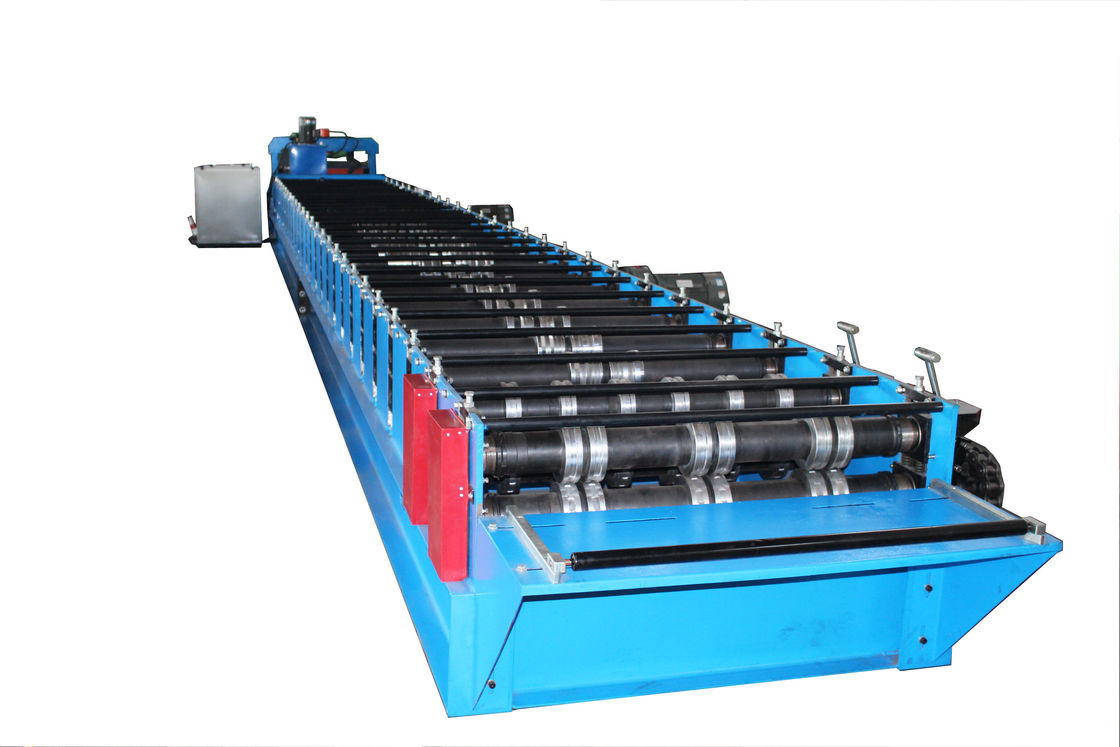

C. Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
D. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
E. Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
F. Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.
G. Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.
H. Machine loading
All machines need one 40ft container to hold.
