|Product Name:||Metal Roof Panel Muskoka Panel Muskoka Glazed Tile Roof Roll Forming Machine||Condition:||New|
deck floor roll forming machine,
steel sheet making machine
Metal Roof Panel Katola Panel Katola Glazed Tile Roof Roll Forming Machine
This Katola panel system provides all the style and durability of our full length panels but at a cost to better suit your budget. Coming in standard 44 3/8″ x 16″ 26 gauge sheets, the Katola series is ideal for the entry-level do-it-yourself market. Laying down like ordinary roofing shingles, these smaller sheets are easy to transport and install. They are ideal for homes, cottages, sheds, high-pitched roofs, and other difficult-to-reach jobs.
|1||Coil||Galvalume, Galvanized, PPGI, Aluminum|
|2||Raw Material Thickness||20-30 GA|
|3||Working Speed||3-5 m/min ( not including the cutting time)|
|4||Roller Station||16 Raws|
|7500 mm*1500 mm*1500 mm|
|6||Machine Weight||5800 KG|
Electrical Control System
Panasonic PLC (can be customized)
Drive Motor Power
Hydraulic Station Power
240V, 60HZ, 3 PHASES(can be customized)
Single Chain 1 inch
Material of Shaft
70 mm 45#steel forged
|14||Material of Roller||
45# Steel Finish Machining, Plated Hard
(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.

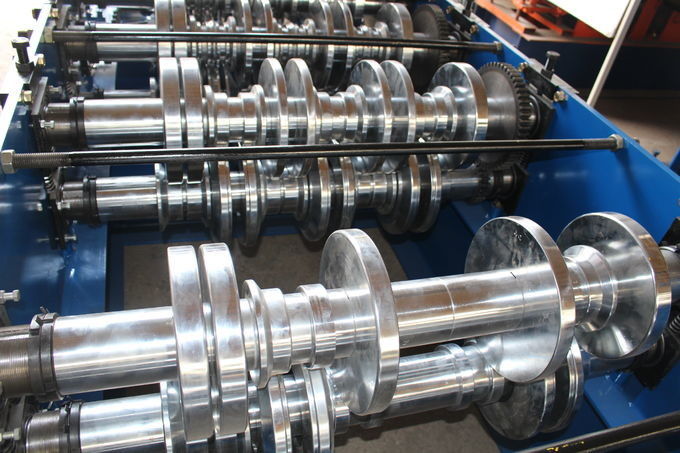

(3 )Machine material
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, heat treatment.
Roller material: bearing steel with heat treatment
(4) Shearing mechanism
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.Material of the cutting blades: GCr12, processed by heat treatment
(5) Hydraulic system
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Hydraulic oil :40#
(6) Electrical control cabinet :
Delta PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
(7) Encoder :
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japan. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
