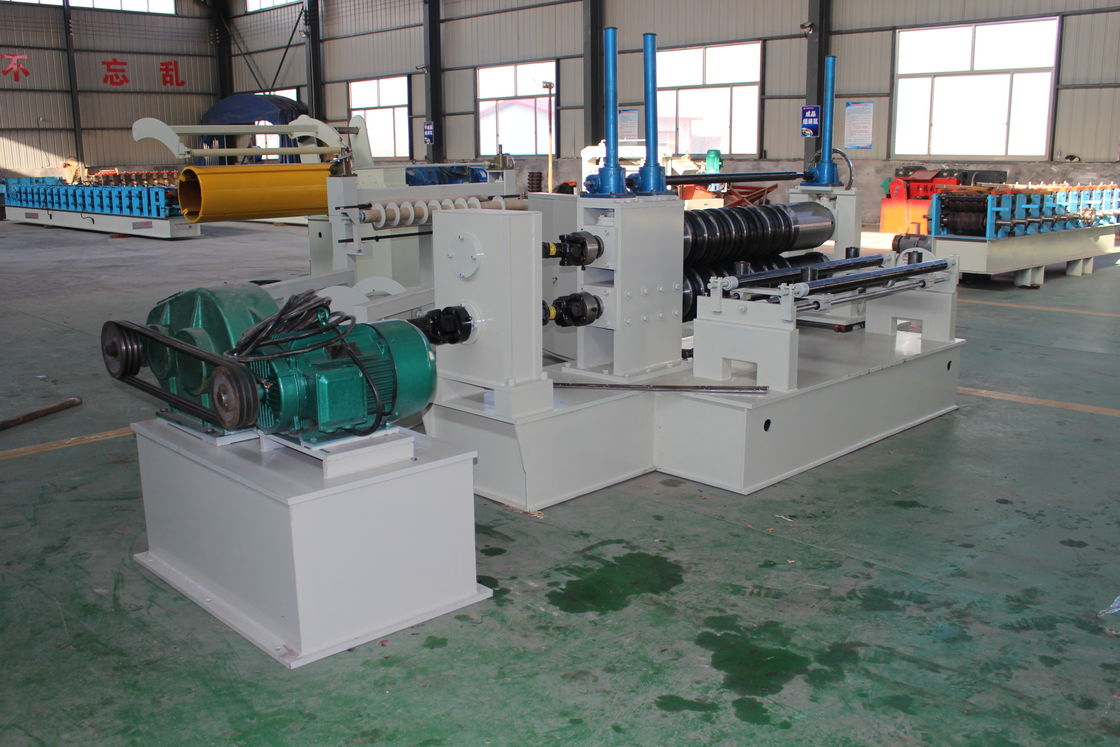

Professional Manufacturer Cut - To - Length Line (CTL) Solutions Production
A CTL or a blanking line will take a master coil of flat rolled steel from the integrated or mini mill and unroll, flatten and cut to length sections to a precise length and stack the sheets into a bundle. Equipment will vary according to the width, thickness and incoming coil weight. Depending on the final end product to be utilized from the cut sheet, flatness may be a critical point and use of a double leveler, skin pass or stretcher leveler may be employed into the process.
Main Technical Specifications
| No. | Item | Description |
| 1 Main Specification | 1 Raw Material | Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa |
| 2 Raw Material Thickness | 0.3 mm - 3.0 mm | |
| 3 Raw Material Width | 600 mm - 1600 mm | |
| 4 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 5 TapeOuter Diameter | φ 1600 mm | |
| 6 Coil Weight | 5 tons - 10 tons | |
| 7 The Highest Slitting LineSpeed | 20 m/min - 100 m/min | |
| 8 Cutting Width Precision | ± 0.01 - ± 0.05 mm | |
| 9. Rated Operational Voltage | 240 V, 3 Phase, 60 Hz | |
| 10. Total Weight | 13000 KG | |
| 11. Working Space(L*W) | 20000 mm*6000 mm | |
| 2 Decoiler Machine Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 tons - 10 tons | |
| 5 Max Working Speed | 20 m/min - 100 m/min | |
| 6 Tape Tight Range | φ 480 mm - φ 530 mm | |
| 7 Shaft Diameter | φ180 mm | |
| 2 Decoiler Machine Specification | 8 Roller Effective Length | 1600 mm |
| 9 Drive Moter Power | 5.5 KW | |
| 10. Loading Car Diameter | φ 700 mm - φ 1500 mm | |
| 11 Loading Car Weight | 5 tons - 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 3 Planing Machine | 1 Shaft Diameter | φ 130 mm |
| 2 Shaft No. | Up 2 rows, down 3 rows | |
| 3 Mid Plate Thickness | 40 mm | |
| 4 Mulch Applicator Diameter | φ 130 mm | |
| 5 Film Width | 1600 mm | |
| 4 Tension Table | 1 Segregation Shaft | 3 pcs, 1 pcs pressure shaft |
| 2 Air Cylinder | 3 pcs | |
| 5 Electrical Control System | 1 sets. Computer Control System is Siemens PLC. | |
