Workshop Sandwich Panel Making Machine EPS Sandwich Panel Production Line

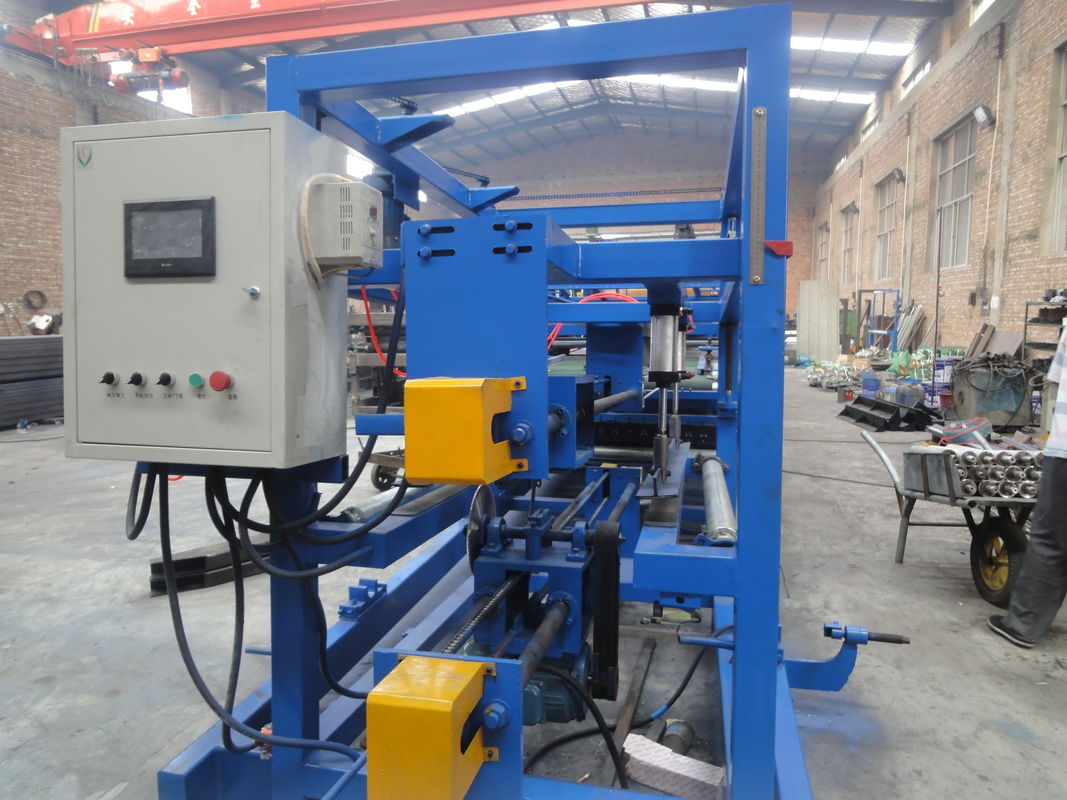

Workshop Sandwich Panel Making Machine EPS Sandwich Panel Production Line
Workshop Sandwich Panel Making Machine EPS Sandwich Panel Production Line

Large Image :  Workshop Sandwich Panel Making Machine EPS Sandwich Panel Production Line

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: EPS Sandwich Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 45 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Sandwich Insulated EPS Sandwich Panel Sandwich Roll Forming Machine Working Speed: 4 M/min
Dimension(l*w*h): 40000 Mm* 2250 Mm * 2500 Mm Material: EPS Or Rockwool
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation,commissioning And Training
High Light:

wall panel roll forming machine

,

sandwich panel making machine

Sandwich Insulated EPS Sandwich Panel Sandwich Roll Forming Machine



Polystyrene Sandwich Panel also called EPS Sandwich Panel. The top & bottom Surface of this panel is Galvanized & pre-painted steel sheets, core material is polystyrene, it is formatted by laminating and pressing with 2 components PU glue. The sandwich panel is featured with temperature keeping, hot & sound insulation, anti water and fire resistant. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.



Profile

Workshop Sandwich Panel Making Machine EPS Sandwich Panel Production Line 0

Specification



No. Item Description
1

Dimensions (L*W*H)

400000 mm*2250 mm*2500 m

2 Steel Thickness  0.25 mm- 0.8 mm
3 Sandwich Panel Thickenss 50 mm - 300 mm
4 Roller Station

Up layer: 13 rows.    Down layer: 14 rows

5

Working Speed

4 m /min

6

Power

Main motor power: 4kw . Flying saw power: 2*0.75kw

7

Total Power

                                   32 KW

8

Machine Weight

22 tons

9

Steel Coil Width

1000 mm   1200 mm  1250 mm

10

Hydraulic motor power

15 kw

11

Cutting Accuracy

±2 mm



Structure introduction



1 Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 1-2 Ton, and it is capable for most of the cases.



2 Feeding

Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.



3 Machine material

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm

Roller material: Forging Steel 45# heat treatment, coated



4 Shearing mechanism

It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products. Side guide rails are ensuring the cutting balance during the cuter fall down, this mechanism is adopted to keep the burr and other edge fault away. Material of the cutting blades: GCr12, processed by heat treatment



5 Hydraulic system

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.

The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves. Power of The Pump: 4kw.Hydraulic oil :40#



6 Electrical control cabinet

Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.



7 Encoder

We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 45 working days after the down payment is received.
