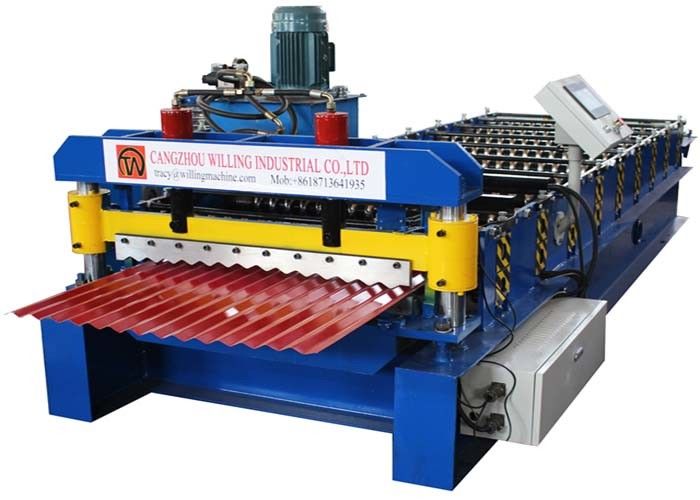

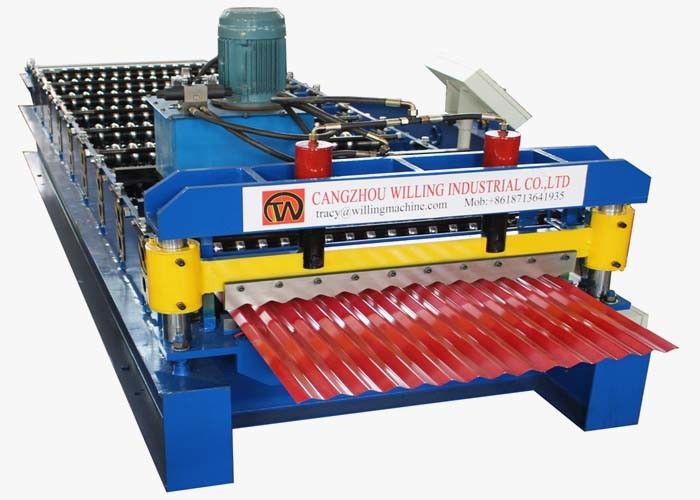

0.3-0.6mm Roof Roll Forming Machine PI/GGPI 9 Rows Corrugated Sheet Making Machine

0.3-0.6mm Roof Roll Forming Machine PI/GGPI 9 Rows Corrugated Sheet Making Machine
0.3-0.6mm Roof Roll Forming Machine PI/GGPI 9 Rows Corrugated Sheet Making Machine 0.3-0.6mm Roof Roll Forming Machine PI/GGPI 9 Rows Corrugated Sheet Making Machine

Large Image :  0.3-0.6mm Roof Roll Forming Machine PI/GGPI 9 Rows Corrugated Sheet Making Machine

Product Details:
Place of Origin: China
Brand Name: cangzhou willing
Certification: CE,ISO
Model Number: 850
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Thickness: 0.3-0.6MM Dimension(l*w*h): 4780mm*1250mm*1200mm
Product Name: 0.3-0.6mm Corraguted Ondulada PI/GGPI Roof Roll Forming Machine 9 Rows Forming Speed: 8-15m/min
Material Width: 1000mm Tile Type: Roof
High Light:

roofing sheet roll forming machine

,

roofing sheet manufacturing machine

0.3-0.6mm Corraguted Ondulada PI/GGPI Roof Roll Forming Machine 9 Rows



Application

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.



Competitive Advantage

1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance



Equipment Detailed Parameters:

No. Item Description
1 Coil Width:1000mm
2 Forming speed 8-10 m/min (not including cutting time)
3 Roller Stations 9 stations
4 Material of Roller 45# steel finish machining, plated hard chromium surface
5 Material of Main Shaft 45# steel finishing machining and then slack quench processed
6 Material of Shaft 70 mm 45#steel forged
7 Driven Motor Power 3KW
8 Hydraulic Station Power 3 KW
9 Hydraulic Station Pressure 12.0 Mpa
10 Electrical Control System DELTA PLC
11 Dimension (L*W*H) 4780mm*1250mm*1200mm
12 Material of Cutter GCr12
13 Driving Mode single chain 0.6 inch
14 Material Thickness 0.3-0.6mm
15 Power Supply 380V, 60HZ, 3 PHASES
16 Cutting accuracy ±2 mm



1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all willing people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
