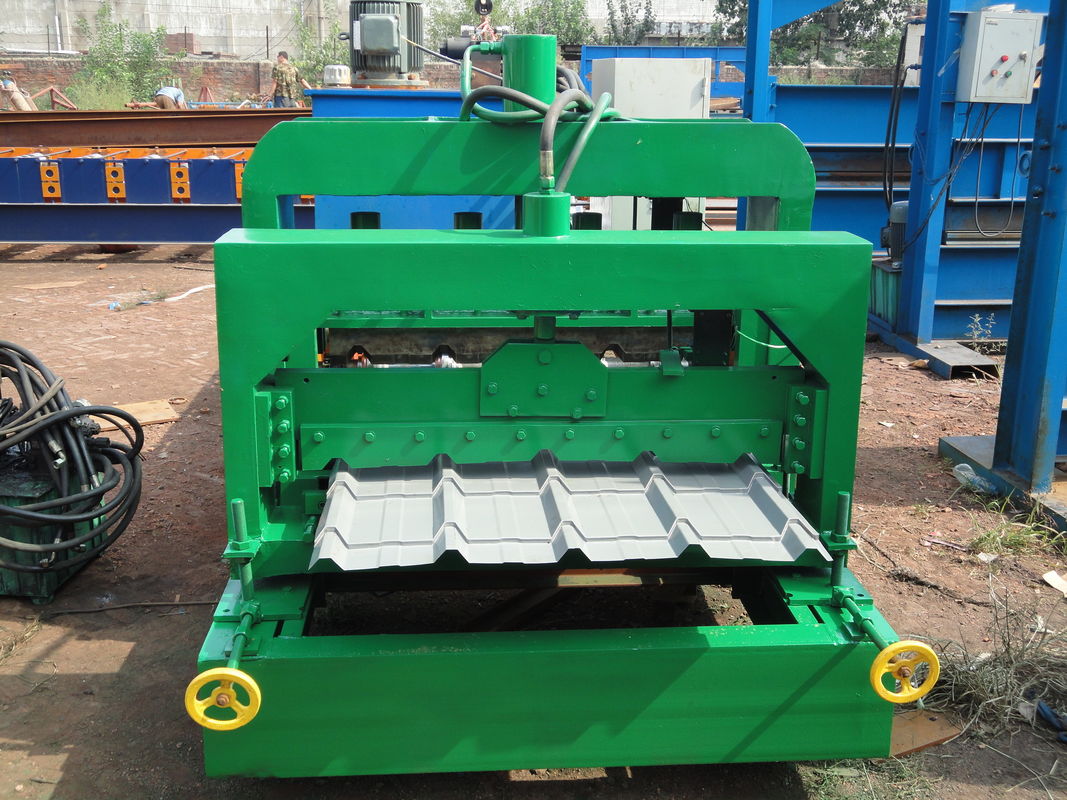

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile
13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile 13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Large Image :  13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Product Details:
Place of Origin: China
Brand Name: cangzhou willing
Certification: CE,ISO
Model Number: 840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Thickness: 0.5-0.6MM Product Name: 13 Rows Tipo Teja Americana Normal Tile Roof Roll Forming Machine
Forming Speed: 3-4m/min Material Width: 1000mm
Tile Type: Colored Glaze Steel, Steel, Roll Forming Machine/building Material Machinery, Colored Plc: DETLA
High Light:

deck floor roll forming machine

,

metal roof roll forming machine

13 Rows Tipo Teja Americana Normal Tile Roof Roll Forming Machine



The raw material of theTipo Teja Americana Normal Tile Roof Roll Forming Machine Tile Roll forming machine is PPGI,GI,AL.

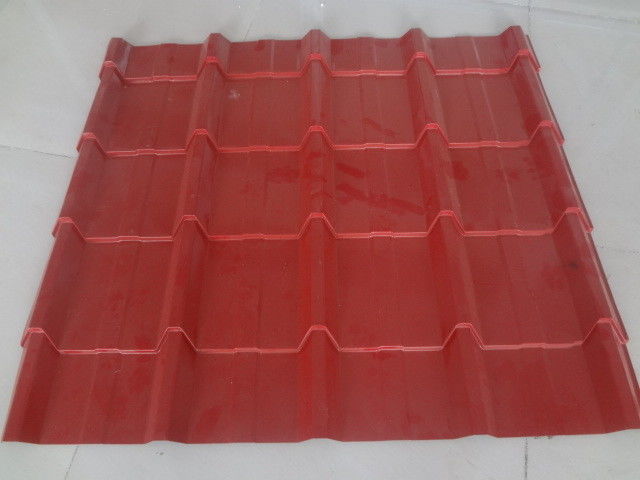

Tipo Teja Americana Normal Tile Roof Roll Forming Machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.



Equipment Detailed Parameters:

No





1



Suitable Material PPGI (235Mpa)

2



Width of the raw material 1000mm
3 Rows of rollers 13rows
4 Appearance size 6500*1550*1200mm
5

Total power



Main motor +Hydraulic station power 7.5kw with cooling fan
6 Thickness of raw material 0.5-0.6mm



7



Productivity

3-4m/min
8 Diameter of shaft ¢70mm

9



Voltage 380V 50Hz 3phases
10 Big frame 350H steel
11 Middle plate 16mm
