Product Details:
Payment & Shipping Terms:
|
| Thickness: | 0.5-0.6MM | Product Name: | Tipo Teja Colonial Tradicional Tile Roof Roll Forming Machine |
|---|---|---|---|
| Forming Speed: | 3-4m/min | Material Width: | 1200mm |
| Tile Type: | Colored Glaze Steel, Steel, Roll Forming Machine/building Material Machinery, Colored | Plc: | DETLA |
| High Light: | roofing sheet roll forming machine,roofing sheet manufacturing machine |
||

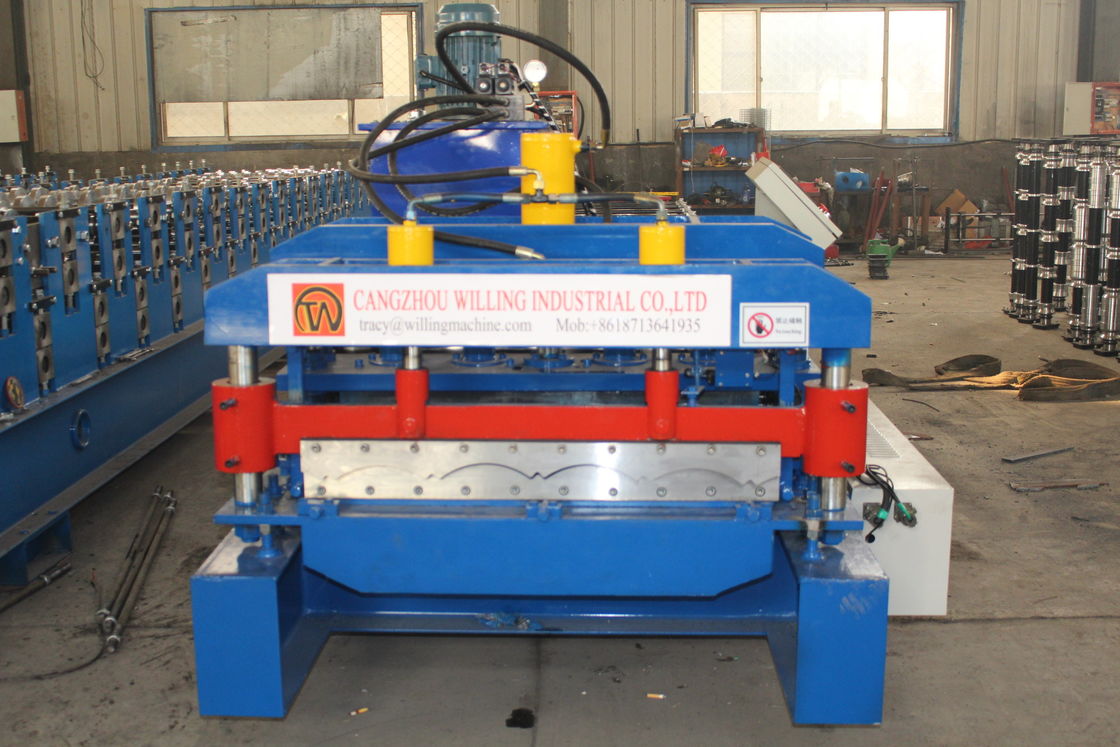

Tipo Teja Colonial Tradicional Tile Roof Roll Forming Machine
The raw material of theTipo Teja Colonial Tradicional Tile Roof Roll Forming Machine Tile Roll forming machine is PPGI,GI,AL.
Tipo Teja Colonial Tradicional Tile Roof Roll Forming Machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.
Equipment Detailed Parameters:
|
No
|
||
|
1
|
Suitable Material | PPGI (235Mpa) |
|
2
|
Width of the raw material | 1200mm |
| 3 | Rows of rollers | 13rows |
| 4 | Appearance size | 6500*1550*1200mm |
| 5 |
Total power
|
Main motor +Hydraulic station power 7.5kw with cooling fan |
| 6 | Thickness of raw material | 0.5-0.6mm |
|
7 |
Productivity |
3-4m/min |
| 8 | Diameter of shaft | ￠70mm |
|
9
|
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
