|Product Name:||Floor Decking Sheets 50/230 MM Decking Sheet Floor Deck Roll Forming Machine||Raw Material:||Galvanized|
|Raw Material Thickness:||0.8-2.0MM||Dimension(l*w*h):||13000*1500*1200mm|
|Raw Material Width:||1220 Mm||Warranty:||1 Year|
metal roof roll forming machine,
steel sheet making machine

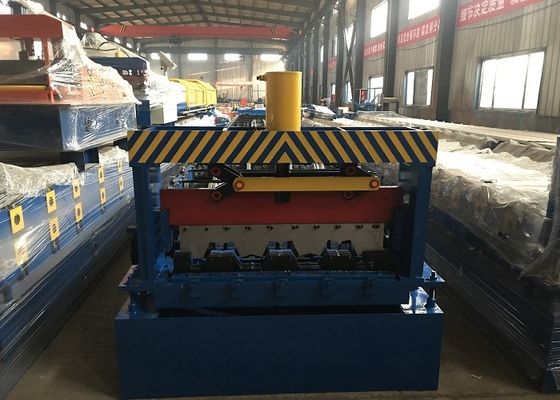

Floor Decking Sheets 50/230 MM Decking Sheet Floor Deck Roll Forming Machine
Trapezoidal Metal Profile sheets with strong and reliable shear bond performance which is augmented by cross embossing located in the profile. The composite floor profile offers the ultimate in the light weight steel decking which reduced concrete usage to provide a cost effective and alternative floor solution that easy to install.
Equipment Detailed Parameters:
|2||Raw Material Thickness||0.8 mm-2.0 mm|
|3||Working Speed||8-15 m/min ( not including the cutting time)|
|4||Roller Station||22 Raws|
|5||Dimension (L*W*H)||13000 mm*1500 mm*1500 mm|
|6||Machine Weight||9500 KG|
|7||Electrical Control System||Panasonic PLC (can be customized)|
|8||Drive Motor Power||7.5 KW|
|9||Hydraulic Station Power||5 KW|
|10||Power Supply||380V, 60HZ, 3 PHASES(can be customized)|
|11||Cutting Accuracy||±2 mm|
|12||Driving Mode||Single Chain 2 inch|
|13||Material of Shaft||80 mm 45#steel forged|
|14||Material of Roller||45# Steel Finish Machining, Plated Hard|
Components and Technical Specification
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.
All machines need one 40ft container to hold.
