Detailed Product Description
Product Name: Metal Roof Panel Muskoka Panel Muskoka Glazed Tile Roof Roll Forming Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Raw Material: PPGI/Galvanized Sheet Voltage: 380V 50Hz 3phases
High Light:

metal roof panel machine

,

roofing sheet manufacturing machine

Metal Roof Panel Muskoka Panel Muskoka Glazed Tile Roof Roll Forming Machine


This Muskoka panel is 30% wider than traditional rib panels, no other panel comes close. A distinctive continuous look that is virtually seamless. Designed to meet the harshest weather and load conditions while providing long-term building performance, the Muskoka panel is a natural choice for large agricultural and light industrial applications. This panel has a 3/4” high rib at 10 7/8” centres running vertically. For new construction the panel can be installed directly onto 1/2” plywood or over 1”x 4” horizontal strapping.



Profile

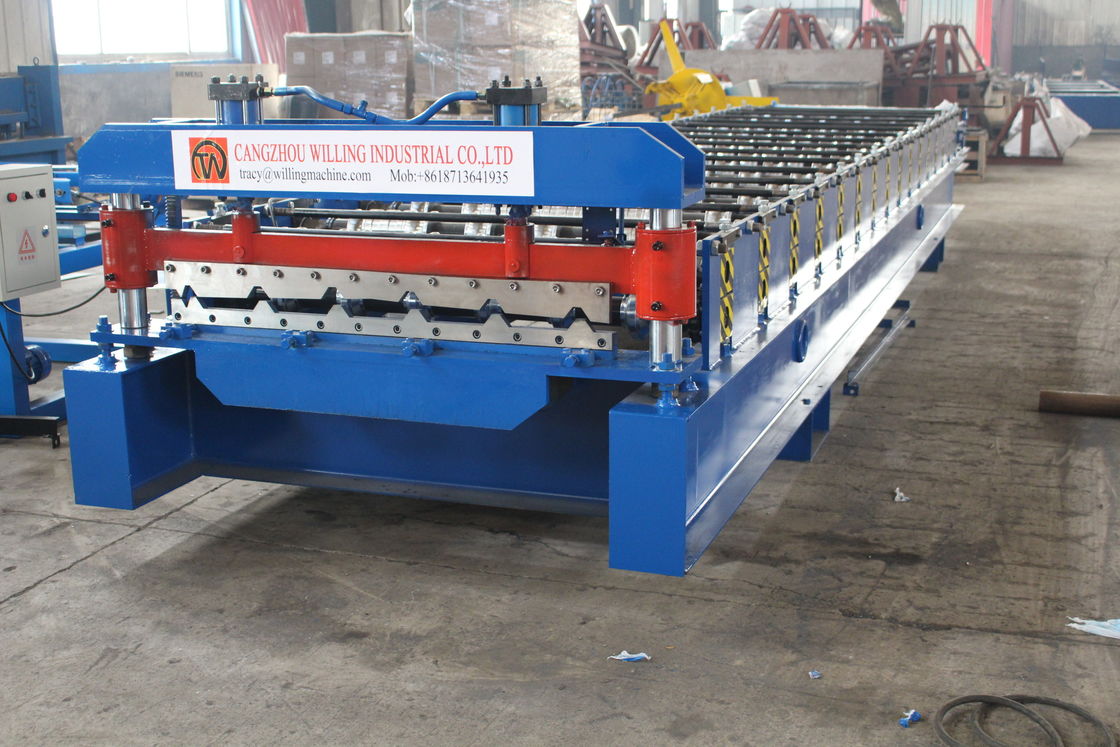

Muskoka Glazed Tile Roll Forming Machine Easy Maintenance Long Working Life 0
Muskoka Glazed Tile Roll Forming Machine Easy Maintenance Long Working Life 1
Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 20-30 GA
3 Working Speed 10-20 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5

Dimension (L*W*H)

7500 mm*1500 mm*1500 mm
6 Machine Weight 5800 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

7 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Structure introduction
(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.



(2) Feeding
Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.


(3)Machine material
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, heat treatment.
Roller material: bearing steel with heat treatment



(4) Shearing mechanism
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.Material of the cutting blades: GCr12, processed by heat treatment



(5) Hydraulic system
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Hydraulic oil :40#



(6) Electrical control cabinet :
Delta PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.


(7) Encoder :
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japan. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.


Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
