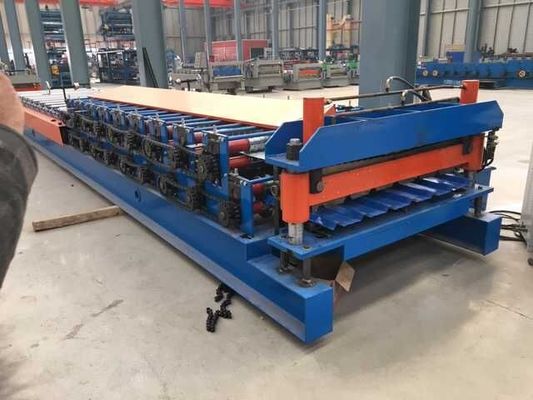

Liner And Profile Double Layer Roll Forming Machine 415V 1220/1450mm Width

Liner And Profile Double Layer Roll Forming Machine 415V  1220/1450mm Width
Liner And Profile Double Layer Roll Forming Machine 415V  1220/1450mm Width

Large Image :  Liner And Profile Double Layer Roll Forming Machine 415V 1220/1450mm Width

Product Details:
Place of Origin: China
Brand Name: cangzhou willing
Certification: CE,ISO
Model Number: 1450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Raw Material: PPGI/Galvanized Sheet Thickness: 0.3-0.8MM
Product Name: 415V Liner And Profile 2 Layers Roof Roll Forming Machine 1220/1450mm Width Forming Speed: 8-15m/min
Material Width: 1450mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

metal roof panel machine

,

roofing sheet roll forming machine

415V Liner And Profile 2 Layers Roof Roll Forming Machine 1220/1450mm Width



One machine can produde two different shapes.

Save spave

Save money



Equipment Detailed Parameters:

No. Item Description
1 Coil Width:1220mm & 1450mm
2 Forming speed 8-15 m/min (not including cutting time)
3 Roller Stations 9 stations & 22 stations
4 Material of Roller 45# steel finish machining, plated hard chromium surface
5 Material of Main Shaft 45# steel finishing machining and then slack quench processed
6 Material of Shaft 70 mm 45#steel forged
7 Driven Motor Power 5.5 KW
8 Hydraulic Station Power 4 KW
9 Hydraulic Station Pressure 12.0 Mpa
10 Electrical Control System Panasonic PLC
11 Dimension (L*W*H) 11000mm*1500mm*1500mm
12 Material of Cutter GCr12
13 Driving Mode single chain 1 inch
14 Material Thickness 0.3-0.8mm
15 Power Supply 415V, 50HZ, 3 PHASES
16 Cutting accuracy ±2 mm

Liner And Profile Double Layer Roll Forming Machine 415V  1220/1450mm Width 0

Liner And Profile Double Layer Roll Forming Machine 415V  1220/1450mm Width 1
