Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Roofing Decoration Materials Door Frame Shutter Door Roll Forming Machine | Raw Material: | Galvalume, Galvanized, PPGI |
|---|---|---|---|
| Working Speed: | 30 M/min - 50 M/min High Speed | Material Thickness: | 0.3 Mm - 0.8 Mm |
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| High Light: | automatic rolling shutter machine,door shutter roll forming machine |
||

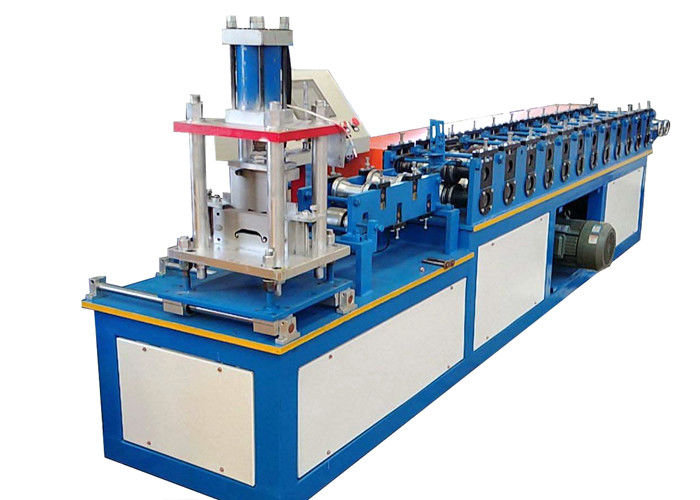

Metal Roofing Decoration Materials Door Frame Shutter Door Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.6 mm - 1.0 mm |
| 3 | Working Speed | 30-50 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mr. Ryan
Tel: +8615100375273
Fax: 86-317-2016816
