High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine

High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine
High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine

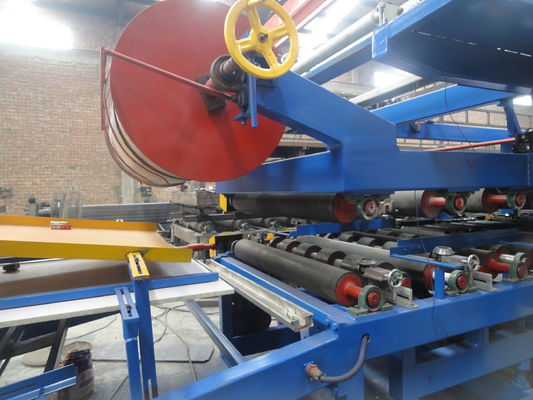

Large Image :  High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Rock Wool Sandwich Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 45 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Fire - Proof Materials Construction Rock Wool Sandwich Panel Roll Forming Machine Voltage: 380V 50Hz 3phases,380V Or As Customize
Working Speed: 4 M/min Condition: New
Dimension(l*w*h): 40000 Mm* 2250 Mm * 2500 Mm Material: EPS Or Rockwool
High Light:

sandwich panel making machine

,

sandwich panel production machinery

Metal Fire - Proof Materials Construction Rock Wool Sandwich Panel Roll Forming Machine



This equipment adopts advanced production technology, which integrates gas, electricity and machinery. It is a special mechanical equipment for processing color steel heat-insulating composite panels. The working speed is stepless speed regulation, which can produce composite panels at one time. Machine, forming machine, compound machine (crimping, glue spraying, heating, bonding, crimping, slotting, trimming, cutting) are necessary equipment for the production of roofs and wall panels in industrial plants, warehouses, etc.



Profile



High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine 0



High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine 1



PS: The machine can produce both rock wool composite plate and foam composite board.



Specification



No. Item Description
1

Dimensions (L*W*H)

400000 mm*2250 mm*2500 m

2 Steel Thickness  0.25 mm- 0.8 mm
3 Sandwich Panel Thickenss 50 mm - 300 mm
4 Roller Station

Up layer: 13 rows.    Down layer: 14 rows

5

Working Speed

4 m /min

6

Power

Main motor power: 4kw . Flying saw power: 2*0.75kw

7

Total Power

                                   32 KW

8

Machine Weight

22 tons

9

Steel Coil Width

1000 mm   1200 mm  1250 mm

10

Hydraulic motor power

15 kw

11

Cutting Accuracy

±2 mm



Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 45 working days after the down payment is received.



High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine 2
