Product Details:
Payment & Shipping Terms:
|

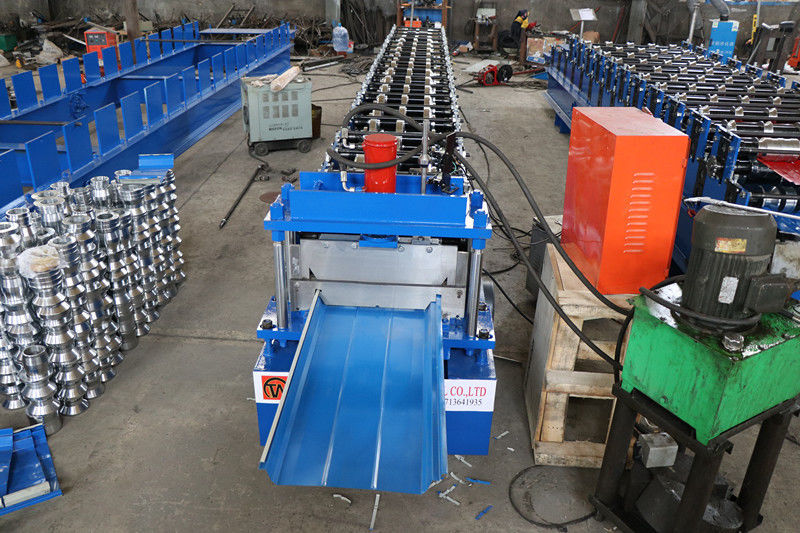

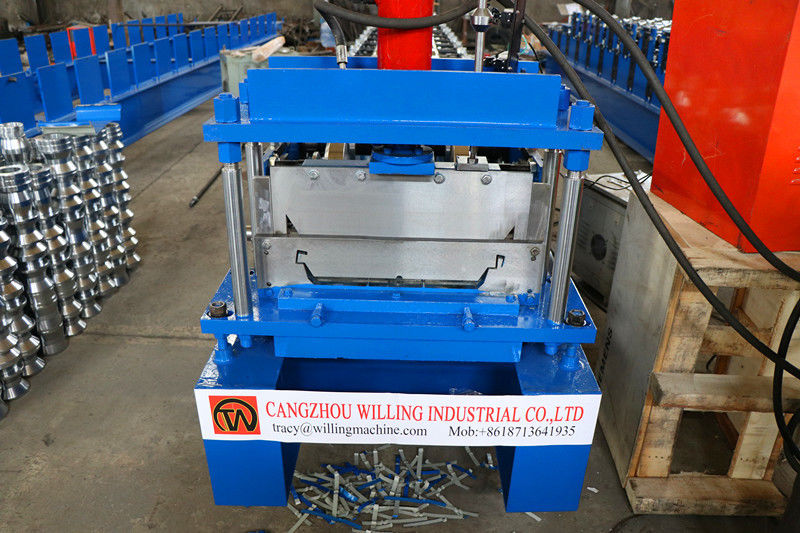

| Product Name: | 20stations 610mm Width Standing Beam Roof Roll Forming Machine For India | Raw Material: | PPGI/Galvanized Sheet |
|---|---|---|---|
| Thickness: | 0.5-0.8MM | Shaft Material: | Material Is 45# Forge Steel |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Use: | Roof |
| High Light: | metal roof panel machine,roofing sheet manufacturing machine |
||
1. Most popular use for aiport and metro project
2. No screw jointing
3. Seaming overlap
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil width | About 610mm |
| 2 | Working Speed | 8-15m/min (not including cutting time) |
| 3 | Roller Stations | 20 stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Hardness of roller | HRC 58-62 |
| 6 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 7 | Material of Shaft | 70 mm 45#steel forged |
| 8 | Main Motor Power | 5.5 KW |
| 9 | Electrical Hydraulic Station Power | 4 KW |
| 10 | Hydraulic Station Pressure | 12.0 Mpa |
| 11 | Electrical Control System | PLC Panasonic |
| 11 | Material of Cutter | Cr12 MOV |
| 12 | Hardness of cutter | HRC:58-62 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.5-0.8mm |
| 17 | Power Supply | 415V, 50HZ, 3 PHASES |
| 18 | Cutting accuracy | ±2mm |
