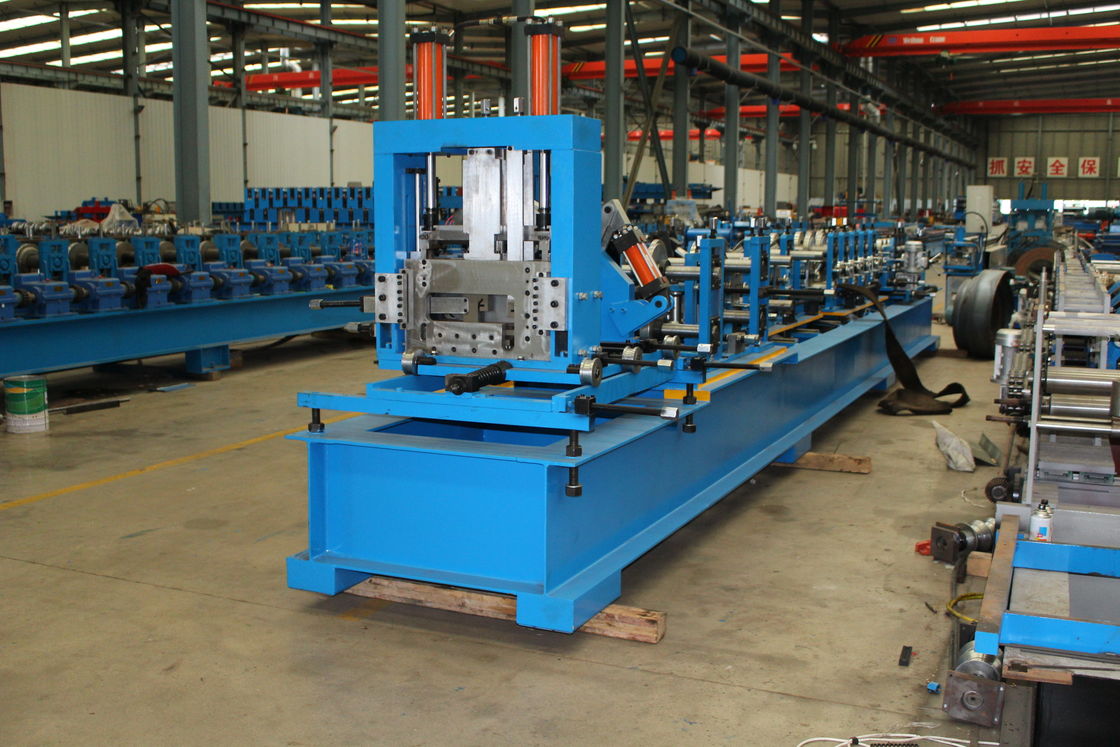

Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation

Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation
Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation

Large Image :  Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Simi - Automatic Z Purlin Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Simi - Automatic Exchangeable Metal Roofing Purlin Z Purlin Roll Forming Machine Type: Steel Frame & Z Purlin Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service Tile Type: Galvanized,c Z Purlin Roll Forming Machine Light
Voltage: 380V 50Hz 3phases,380V Or As Customize Condition: New
High Light:

c purlin roll forming machine

,

z purlin roll forming machine

Simi - Automatic Exchangeable Metal Roofing Purlin Z Purlin Roll Forming Machine



This model is Simi - Automatic adjusted the different sizes. There are some scale bottom on one side . Press the bottom can change the different size.


Specification



No. Item Description
1 Coil Galvanized
2 Material Thickness  1 mm- 3 mm
3 Working Speed 20- 25 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5

Dimension (L*W*H)

7000 mm*1000 mm*1300 mm
6 Machine Weight 8000 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

1515
9           Hydraulic Motor Power 4 KW
10

Power Supply

360V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 2 inch

13

Material of Shaft

80 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard





Z Purlin Size



Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation 0



Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation 1



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.



Exchangeable Z Purlin Roll Forming Machine Semi Automatic Easy Operation 2
