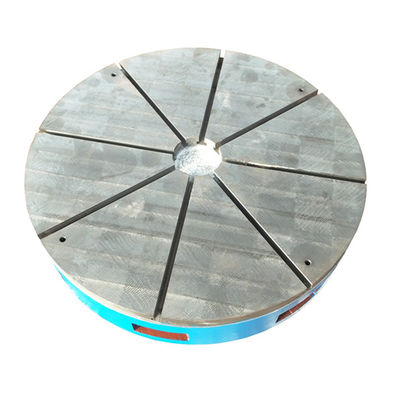

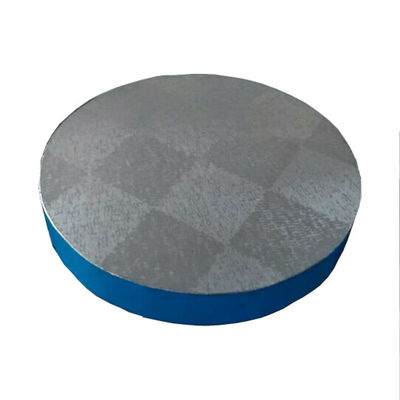

Being a client-centric organization, we are manufacturing, supplying and exporting a wide range of Cast Iron Plates. Widely used in high precision applications for blue matching and various other purposes, these plates are manufactured from high-grade raw material procured from reliable vendors of the market. This range comprises ofPlummer Block Casting, Cast Iron Sole Plate, Motor Test Bed, Cast Iron Welding Plate and many others. Moreover, we offer these castings in variegated specifications as per the requirements of the clients. These plates are available at market leading prices.
Materials and Processing:
(1) The material of our surface plate/table is cast iron HT200-350
(2) Working surface hardness is HB170-240
(3) Low inaccuracy error and good in grinding resistance.
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
Specification (mm) | Flatness tolerance (um) | |||
Grade1 | Grade2 | Grade 3 | Finihs plane | |
400x400 | 12 | 24 | ||
600x400 | 14 | 28 | ||
800x500 | 16 | 32 | 80 | |
900x600 | 16 | 32 | 80 | |
1000x750 | 18 | 36 | 90 | |
1000x1000 | 20 | 39 | 96 | |
1500x1000 | 25 | 48 | 120 | |
2000x1000 | 26 | 52 | 129 | |
2000x1500 | 56 | 140 | ||
2000x2000 | 60 | 152 | 230 | |
2500x1500 | 68 | 168 | 248 | |
3000x1000 | 174 | 248 | ||
3000x2000 | 184 | 275 | ||
3000x3000 | 210 | 300 | ||
4000x1000 | 210 | 300 | ||
4000x2000 | 219 | 310 | ||
4000x3000 | 240 | 360 | ||
5000x2000 | 255 | 375 | ||
5000x3000 | 287 | 420 | ||
6000x2000 | 293 | 430 | ||
6000x3000 | 308 | 460 | ||
8000x2000 | 370 | 520 | ||
8000x3000 | 382 | 570 |
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Nocie for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
