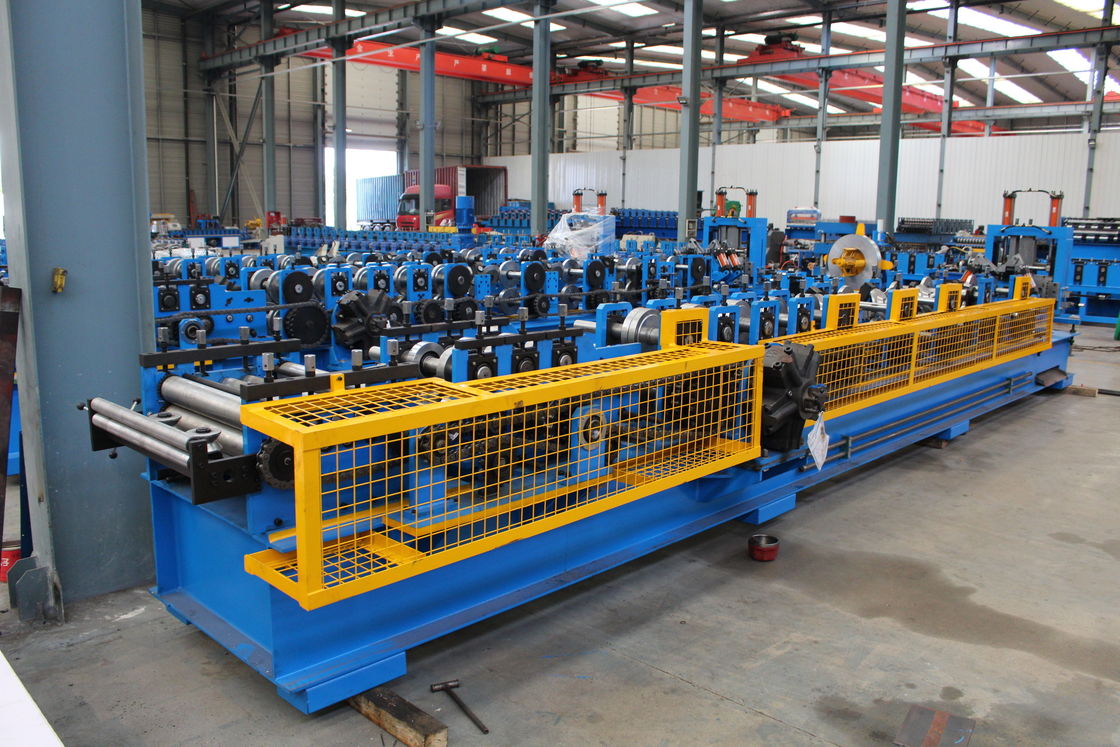

Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min

Bearing Leg CZ Purlin Roll Forming Machine Speed  Adjustable 10- 20 M / Min
Bearing Leg CZ Purlin Roll Forming Machine Speed  Adjustable 10- 20 M / Min Bearing Leg CZ Purlin Roll Forming Machine Speed  Adjustable 10- 20 M / Min

Large Image :  Bearing Leg CZ Purlin Roll Forming Machine Speed Adjustable 10- 20 M / Min

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Manual Adjustable C Purlin Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Manual Adjustable Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine Raw Material: Galvalume, Galvanized
Dimension(L*W*H): 7000 Mm*1500 Mm* 1500 Material Thickness: 1 Mm - 3 Mm
Condition: New Control System: PLC(imported Brand)
High Light:

z purlin roll forming machine

,

purlin roll former

Full Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine

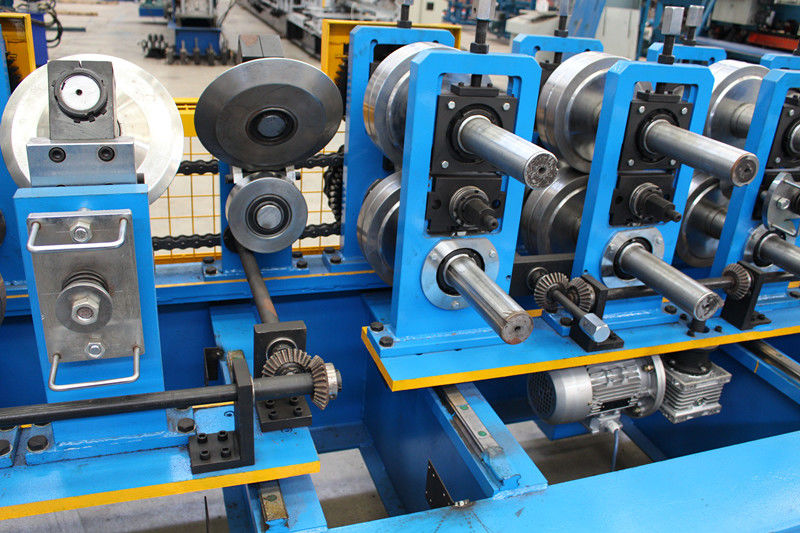

This model is manual adjusted the different sizes. There are many scales and spacers on the shaft .According the scale and change the counterpart spacer, then can produce the different sizes. Compare with the full automatic c purlin roll forming machine, need more time , more familiar operation.


Specification



No. Item Description
1 Coil Galvanized
  Material Thickness  1 mm- 3 mm
3 Working Speed 10- 20 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

6500 mm*1000 mm*1300 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

11 KW
9

Hydraulic Station Power

4 KW
10

Power Supply

360V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 2 inch

13

Material of Shaft

80 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



C Purlin Size



Bearing Leg CZ Purlin Roll Forming Machine Speed  Adjustable 10- 20 M / Min 0



Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.







Bearing Leg CZ Purlin Roll Forming Machine Speed  Adjustable 10- 20 M / Min 1
