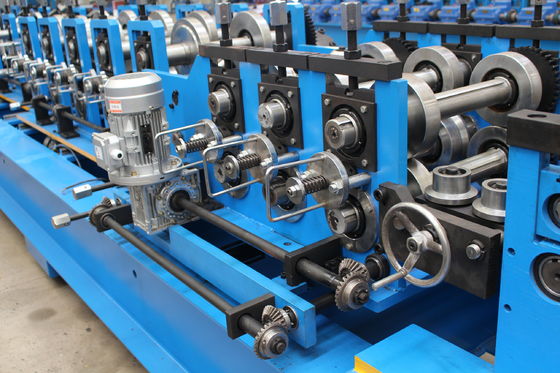

Full Automatic Metal Roof Making Machine Bearing Leg C Purlin Roll Forming Machine

Full Automatic Metal Roof Making Machine Bearing Leg C Purlin Roll Forming Machine
Full Automatic Metal Roof Making Machine Bearing Leg C Purlin Roll Forming Machine Full Automatic Metal Roof Making Machine Bearing Leg C Purlin Roll Forming Machine

Large Image :  Full Automatic Metal Roof Making Machine Bearing Leg C Purlin Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Full Automatic C Purlin Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Full Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine Raw Material: Galvalume, Galvanized
Dimension(L*W*H): 7000 Mm*1500 Mm* 1500 Material Thickness: 1 Mm - 3 Mm
Weight: 4 Tons Warranty: 1 Year
High Light:

c purlin roll forming machine

,

purlin roll former

Full Automatic Metal Roofing Purlin Bearing Leg C Purlin Roll Forming Machine



This model is full automatic production. Especially, exchange the different sizes by computer control and more faster. Only 1-2 minites can finished the changing size.


Specification



No. Item Description
1 Coil Galvanized
  Material Thickness 1 mm- 3 mm
3 Working Speed 10- 20 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5

Dimension (L*W*H)

8000 mm*1000 mm*1300 mm
6 Machine Weight 4500 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

15KW
9

Hydraulic Station Power

15 KW
10

Power Supply

360V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 2 inch

13

Material of Shaft

80 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



C Purlin Size



Full Automatic Metal Roof Making Machine Bearing Leg C Purlin Roll Forming Machine 0



Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
