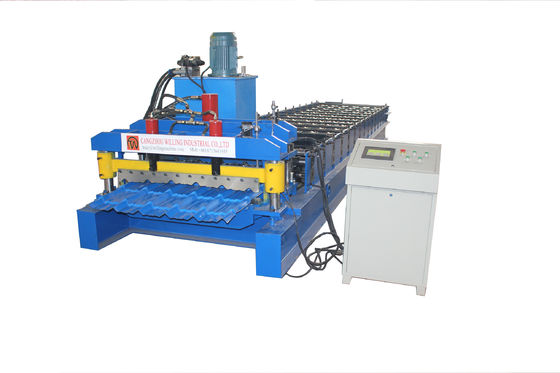

Hydraulic Motor Glazed Tile Roll Forming Machine 3-4m / Min High Efficiency

Hydraulic Motor Glazed Tile Roll Forming Machine  3-4m / Min High Efficiency
Hydraulic Motor Glazed Tile Roll Forming Machine  3-4m / Min High Efficiency

Large Image :  Hydraulic Motor Glazed Tile Roll Forming Machine 3-4m / Min High Efficiency

Product Details:
Place of Origin: China
Brand Name: cangzhou willing
Certification: CE,ISO
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Raw Material: PPGI/AL Thickness: 0.5-0.6MM
Dimension(l*w*h): 8500*1550*1200mm Product Name: Hydraulic Motor 3-4m/min Glazed Tile Roof Roll Forming Machine
Forming Speed: 3-4m/min Material Width: 1200mm
High Light:

roofing sheet roll forming machine

,

roofing sheet manufacturing machine

Hydraulic Motor 3-4m/min Glazed Tile Roof Roll Forming Machine



The raw material of the glazed tile forming machine is PPGI,GI,AL.
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.



Equipment Detailed Parameters:

No





1



Suitable Material PPGI (235Mpa)

2



Width of the raw material 1200mm
3 Rows of rollers 18rows
4 Appearance size 8500*1550*1200mm
5

Total power



Main motor +Hydraulic station power 7.5kw with cooling fan
6 Thickness of raw material 0.5-0.6mm



7



Productivity

3-4m/min
8 Diameter of shaft ¢70mm

9



Voltage 380V 50Hz 3phases
10 Big frame 350H steel
11 Middle plate 16mm

Hydraulic Motor Glazed Tile Roll Forming Machine  3-4m / Min High Efficiency 0



Hydraulic Motor Glazed Tile Roll Forming Machine  3-4m / Min High Efficiency 1
