Blue Cast Iron T Slot Block For Machine Ded 800 X 800 MM Long Service Life

Blue Cast Iron T Slot Block For Machine Ded 800 X 800 MM Long Service Life

cast iron lapping plate

cast iron angle plates

Place of Origin:

China

Brand Name:

OEM

Certification:

CO, FORM-E

Contact Us
Request A Quote
Product Details
Material:
HT250
Name:
800 X 800 MM Cast Iron T Slot Block Blue Color Use For Machine Ded
Type:
Hollow Type
Flatness:
1 Grade
Size:
As Clients Request
Surface Finish:
Hand Scrap
Highlight:

cast iron lapping plate

,

cast iron angle plates

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden
Delivery Time
20days
Payment Terms
Western Union, T/T
Supply Ability
10/monthd
Product Description

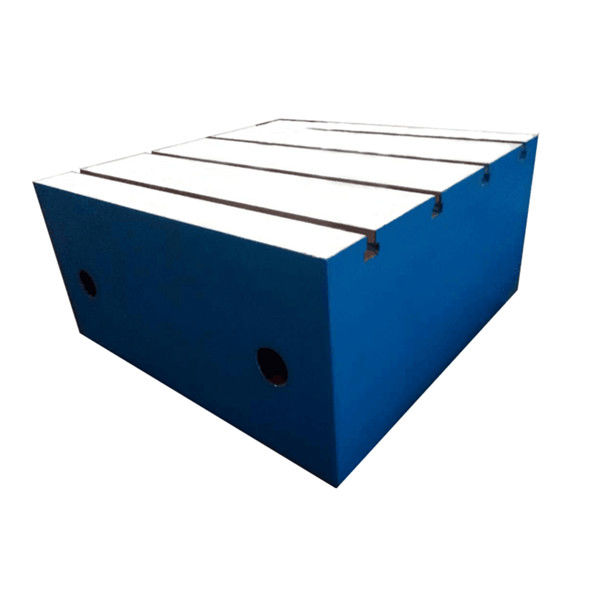

800 X 800 MM Cast Iron T Slot Block Blue Color Use For Machine Ded



Being a client-centric organization, we are manufacturing, supplying and exporting a wide range of Cast Iron Plates. Widely used in high precision applications for blue matching and various other purposes, these plates are manufactured from high-grade raw material procured from reliable vendors of the market. This range comprises ofPlummer Block Casting, Cast Iron Sole Plate, Motor Test Bed, Cast Iron Welding Plate and many others. Moreover, we offer these castings in variegated specifications as per the requirements of the clients. These plates are available at market leading prices.

Materials and Processing:



(1) The material of our surface plate/table is cast iron HT200-350



(2) Working surface hardness is HB170-240



(3) Low inaccuracy error and good in grinding resistance.



Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
  Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570



Installation and adjustment

When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)



Nocie for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
