Product Details:
Payment & Shipping Terms:
|
| Raw Material: | PPGI/AL | Thickness: | 0.5-0.6MM |
|---|---|---|---|
| Dimension(l*w*h): | 8500*1550*1200mm | Product Name: | Fast Speed Glazed Tile Roof Roll Forming Machine Metropole For Nigeria |
| Forming Speed: | 3-4m/min | Material Width: | 1200mm |
| High Light: | metal roof panel machine,roofing sheet roll forming machine |
||

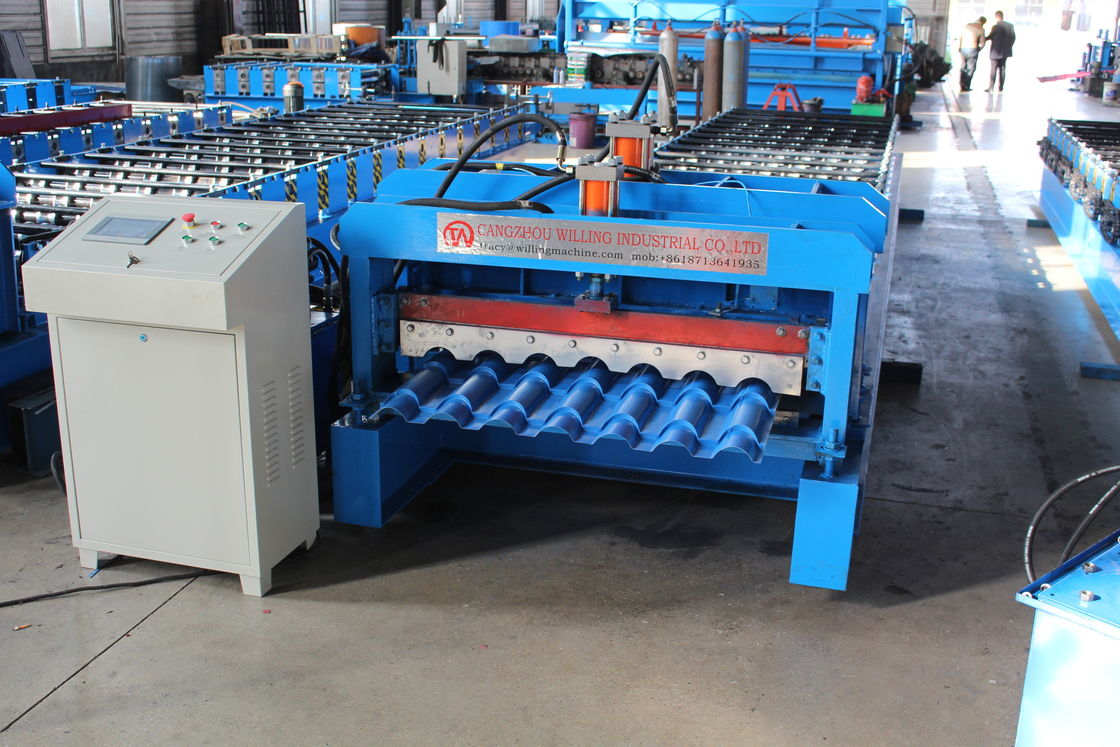

Fast Speed Glazed Tile Roof Roll Forming Machine Metropole For Nigeria
The raw material of the glazed tile forming machine is PPGI,GI,AL.
Glazed tile roll forming machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.
Equipment Detailed Parameters:
|
No
|
||
|
1
|
Suitable Material | PPGI (235Mpa) |
|
2
|
Width of the raw material | 1200mm |
| 3 | Rows of rollers | 18rows |
| 4 | Appearance size | 8500*1550*1200mm |
| 5 |
Total power
|
Main motor +Hydraulic station power 7.5kw with cooling fan |
| 6 | Thickness of raw material | 0.5-0.6mm |
|
7 |
Productivity |
3-4m/min |
| 8 | Diameter of shaft | ￠70mm |
|
9
|
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
1. I am new in this field, do not know about the machine and do not know how to operate it.
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.
If you need, we can also send the technician to your factory to fix the machine and train your workers.
2. What is included in the machine?
The whole line includes a manual decoiler, roll forming machine, product stand and spare parts box.
3. What's your payment terms?
40% as the deposit by T/T in advance, 60% as the balance payment by T/T after you inspect the machine and before delivery.
4. what is your delivery?
After we get down payment, we will arrange the production. About 30-45 working days for delivery.
5. How to visit your company?
1. Fly to Beijing Capital International Airport (PEK), we will pick you up from the exit, it is about 3 hours by car.
2. Take the bullet train to Cangzhou Xi station. We will pick you up, it is about 40 minutes to our factory.
6. Do you supply the coils?
No. We only make roll forming machines.
We will give you the contact information of our long-cooperate coil factory. You contact them directly. In this way, you can get the right coil and get the best price.
