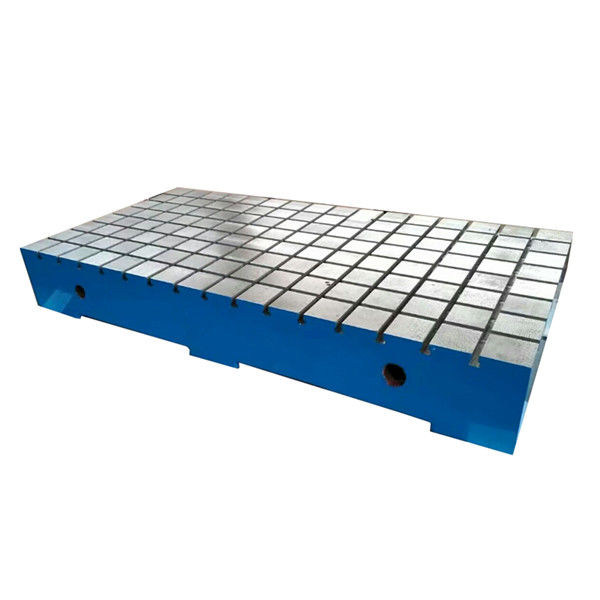

Table Type Cast Iron Surface Plate CNC Milling Machine T Slotted Floor Plate

Name: Table Type Cast Iron Surface Plate CNC Milling Machine T Slotted Floor Plate
Brand: Willing
SKU: Willing
Rating: 4.5 (148 reviews)

Large Image : Table Type Cast Iron Surface Plate CNC Milling Machine T Slotted Floor Plate

Product Details:

Place of Origin:	China
Brand Name:	Willing
Certification:	CO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	wooden
Delivery Time:	60 Days
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Material:	Grey Iron	Color:	As Clients
Bearing Capacity:	As Clients Request	T Slot:	Custom- Made
Flatness:	2 Grade	Size:	Clients Request
High Light:	cast iron lapping plate , cast iron angle plates

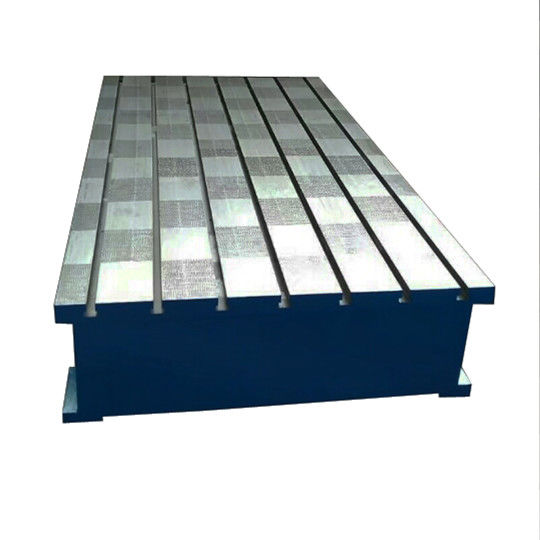

Cast Iron T-Slotted Floor Plate Table Type Milling Machine CNC

Materials and Processing:

(1) The material of our surface plate/table is cast iron HT200-350

(2) Working surface hardness is HB170-240

(3) Low inaccuracy error and good in grinding resistance.

Precision: According to the national standards measurement examination regulations execution respectively is 0,1,2

Specification (mm)	Flatness tolerance (um)
	Grade1	Grade2	Grade 3	Finihs plane
400x400	12	24
600x400	14	28
800x500	16	32	80
900x600	16	32	80
1000x750	18	36	90
1000x1000	20	39	96
1500x1000	25	48	120
2000x1000	26	52	129
2000x1500		56	140
2000x2000		60	152	230
2500x1500		68	168	248
3000x1000			174	248
3000x2000			184	275
3000x3000			210	300
4000x1000			210	300
4000x2000			219	310
4000x3000			240	360
5000x2000			255	375
5000x3000			287	420
6000x2000			293	430
6000x3000			308	460
8000x2000			370	520
8000x3000			382	570

Installation and adjustment

When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)

Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.

Service :

1.Guarantee:

A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.

B: Space parts will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

2.Commissioning:

1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.

3.Payment terms

- 30% by TT in advance

- 70% is paid before the shipment by TT

4.Delivery time: 30 days after the down payment is received
