Payment & Shipping Terms:
|Product Name:||USA Met - Tile Glazed Metal Clay Tile Clay Panel Roof Roll Forming Machine||Raw Material:||Galvalume, Galvanized, PPGI, Aluminum,Copper|
|Dimension(L*W*H):||7000 Mm*1500 Mm* 1500||Thickness:||18 - 32 GA|
|Use:||Roof Panel||Warranty:||1 Year|
roofing sheet roll forming machine,
roofing sheet manufacturing machine

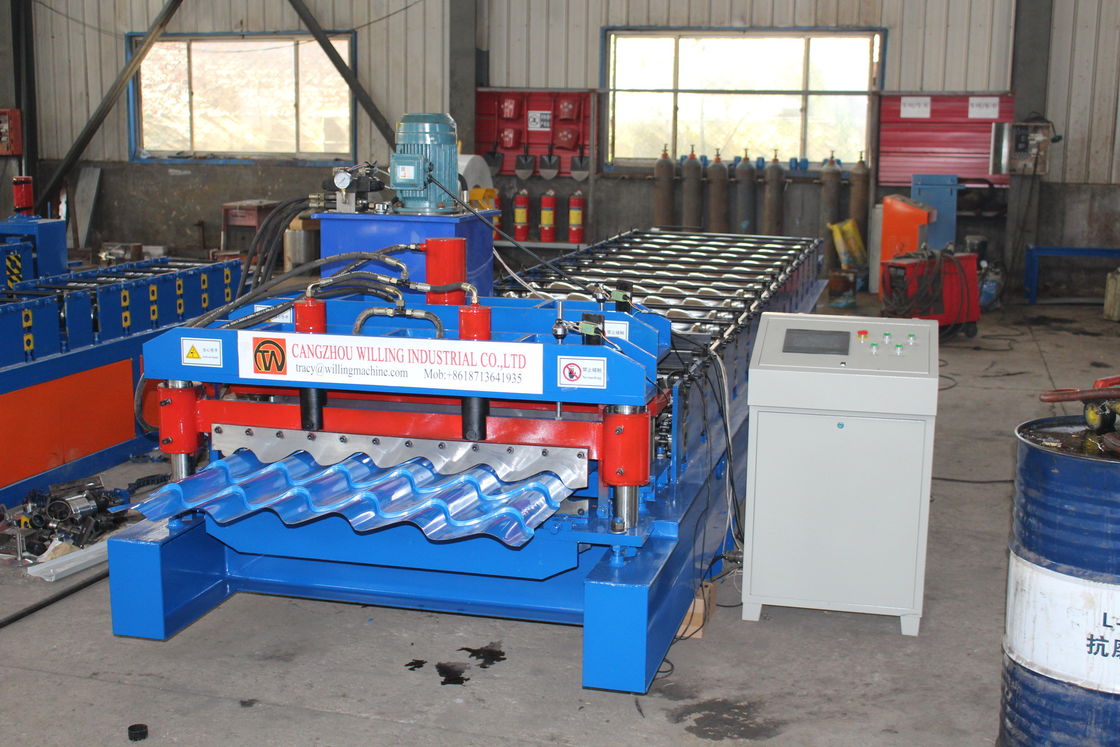

USA Met - Tile Glazed Metal Clay Tile Clay Panel Roof Roll Forming Machine
Met-Tile roofing panel provides the appearance of tile roofing with all the advantages and performance of metal. Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.
Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles. Met-Tile's many benefits are what make Met-Tile such a popular option among property owners and service providers who want something fast, easy, efficient, affordable and attractive.
|1||Coil||Galvalume, Galvanized, PPGI, Aluminum|
|2||Raw Material Thickness||20-30 GA|
|3||Working Speed||3- 5 m/min ( not including the cutting time)|
|4||Roller Station||16 Raws|
|68000 mm*1500 mm*1500 mm|
|6||Machine Weight||4500 KG|
Electrical Control System
Panasonic PLC (can be customized)
Drive Motor Power
Hydraulic Station Power
240V, 60HZ, 3 PHASES(can be customized)
Single Chain 1 inch
Material of Shaft
70 mm 45#steel forged
|14||Material of Roller||
45# Steel Finish Machining, Plated Hard
Components and Technical Specification
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Ryan Li
