Thin Galvanized Corrugated Sheet Roll Forming Machine 0.12-0.4mm Barrel

Name: Thin Galvanized Corrugated Sheet Roll Forming Machine 0.12-0.4mm Barrel
Brand: cangzhou willing
SKU: 3000
Price: 1 USD
Availability: InStock
Rating: 5 (135 reviews)

Large Image : Thin Galvanized Corrugated Sheet Roll Forming Machine 0.12-0.4mm Barrel

Product Details:

Place of Origin:	China
Brand Name:	cangzhou willing
Certification:	CE,ISO
Model Number:	3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Main machine is nude,the computer control box is packed by plastic.
Delivery Time:	30days
Payment Terms:	T/T, Western Union
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Use:	Roof	Product Name:	0.12-0.4mm Barrel Corrugated Roll Forming Machine For Thin Galvanized Material
Raw Material:	PPGI/Galvanized Sheet	Thickness:	0.12-0.4MM
Dimension(lwh):	480023001600mm	Warranty:	12 Months
High Light:	roofing sheet roll forming machine , roofing sheet manufacturing machine

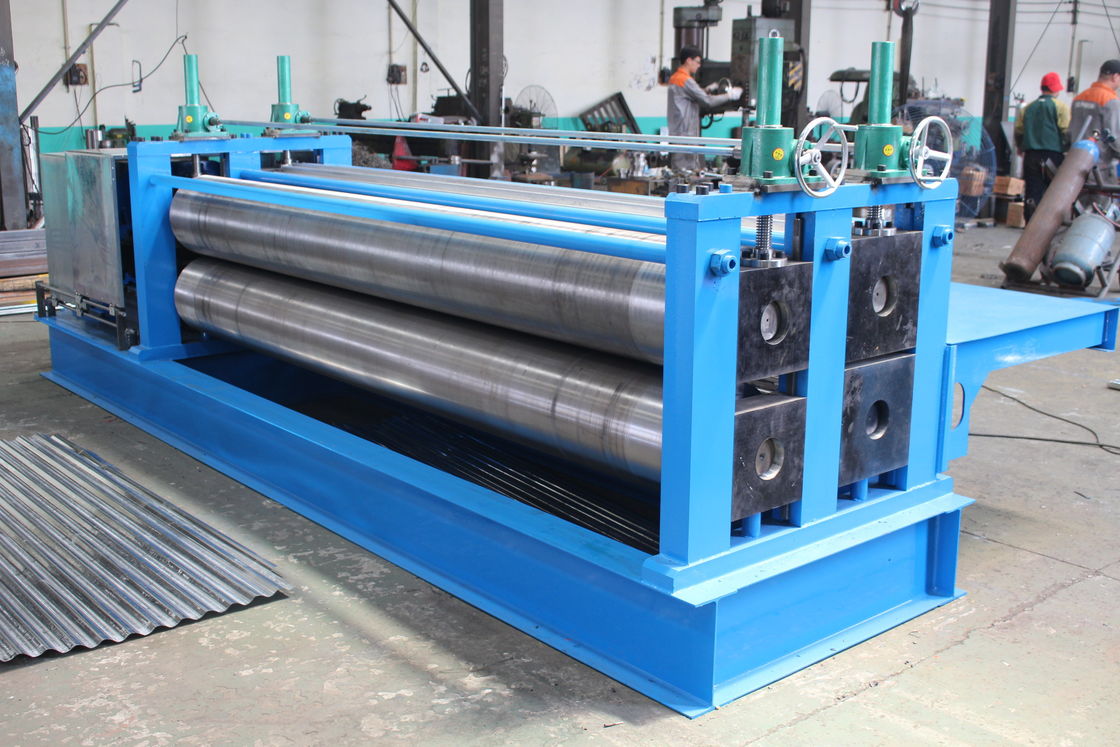

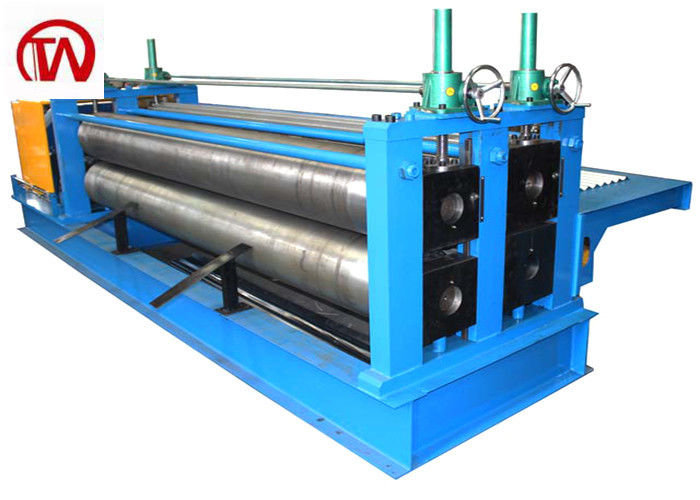

0.12-0.4mm Barrel Corrugated Roll Forming Machine For Thin Galvanized Material

Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.

Parameter

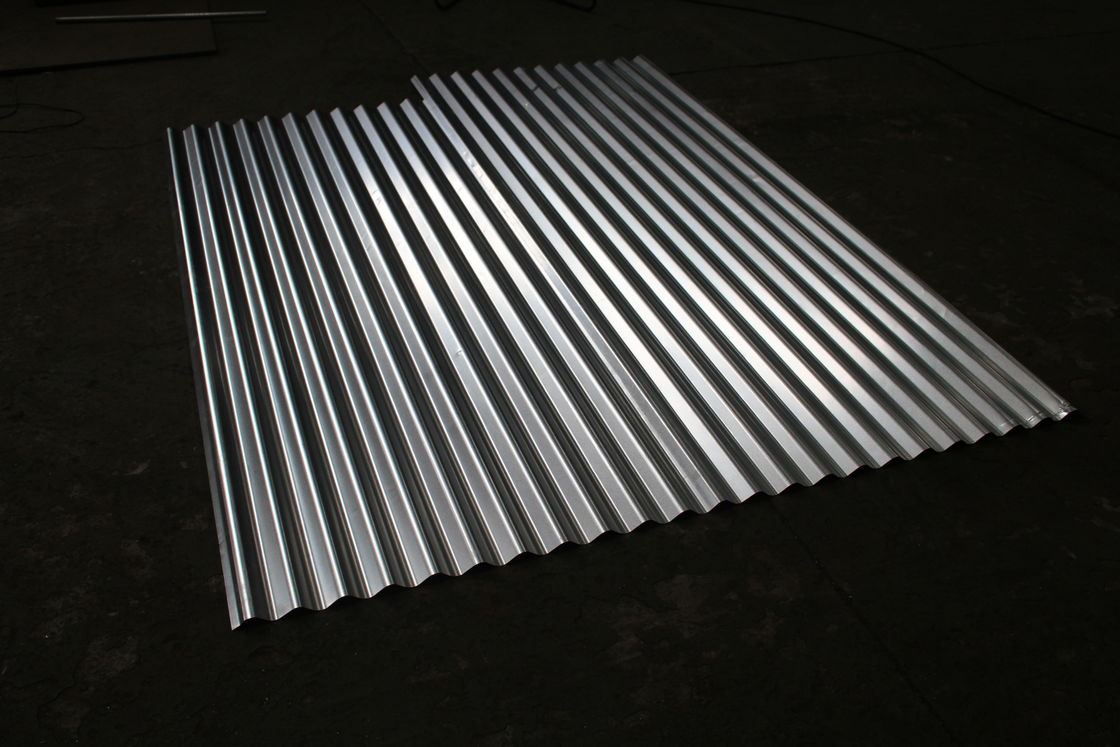

Wave height:18mm, wave distance:76mm
Or Wave height:15mm, wave distance:63mm
Material thickness: 0.12-0.2mm/0.14-0.3mm/0.16-0.4mm
Could not exceed 0.6mm each time
Speed:9-12 time/ min
Output:2-4ton/hour
Effective width:2480mm/3050mm/3200mm/3660mm/3900mm/4100mm/4300mm

Machine loading

All machines need one 20ft container to hold.

Thin Galvanized Corrugated Sheet Roll Forming Machine 0.12-0.4mm Barrel 0
