IBR Roof Roll Forming Machine With 18 Stations Simple Structure No Pollution

IBR Roof Roll Forming Machine With 18 Stations Simple Structure No Pollution

roofing sheet roll forming machine

roofing sheet manufacturing machine

Place of Origin:

China

Brand Name:

cangzhou willing

Certification:

CE,ISO

Model Number:

686

Contact Us
Request A Quote
Product Details
Tile Type:
Glazed Steel
Product Name:

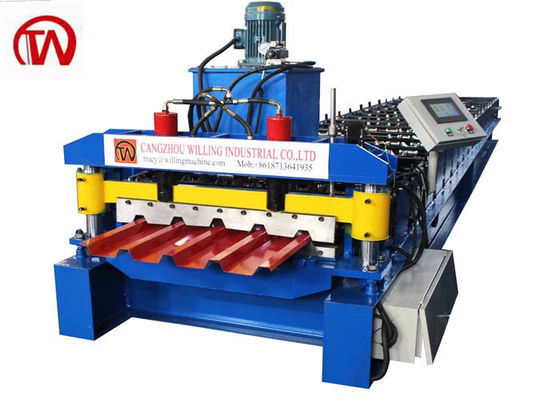

686 IBR Roof Roll Forming Machine With 18 Stations For South Africa
Raw Material:
PPGI/Galvanized Sheet
Thickness:
0.3-0.6MM
Shaft Material:
Material Is 45# Forge Steel
Dimension(l*w*h):
8500*1200*1200mm
Highlight:

roofing sheet roll forming machine

,

roofing sheet manufacturing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
Product Description

686 IBR Roof Roll Forming Machine With 18 Stations For South Africa

1) Simple structure in linear type,easy in installation and maintation.
2) High quality material for Roller and shaft.
3) Double Guide Pillar Type Cutting System with two hydro-cylinder
4) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
5) Running in a high automatization and intellectualization,no pollution


Equipment Detailed Parameters:

No




1


Suitable Material PPGI (235Mpa)

2


Width of the raw material 925mm
3 Rows of rollers 18 rows
4 Appearance size 8500*1200*1200mm
5

Total power


Main motor 3kw
Hydraulic station power 3kw

6 Thickness of raw material 0.3-0.6mm
7 Speed 8-15m/min
8 Diameter of shaft ¢70mm

9


Voltage 380V 50Hz 3phases
10 Big frame 350H steel
11 Middle plate 16mm


Components and Technical Specification

A. Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.

B. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

C. Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

D. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

E. Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta

F. Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.

G. Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.

H. Machine loading
All machines need one 20ft(two pcs) or 40 ft(one pc) container to hold.
