Name: Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: C Purlin
Price: 32,500.00 USD
Availability: InStock

Home > products > CZ Purlin Roll Forming Machine >

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting

C Channel Purlin Roll Forming Machine

U Channel Purlin Roll Forming Machine

Hydraulic Cutting purlin roll former

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

C Purlin

Request A Quote

Product Details

Product Name:

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting

Form Speed:

15-20m/min

Voltage:

380 V Or As Per Drawing

Hydraulic Motor:

7.5kw

Automation:

Automatic

Cutting Blade Material:

Cr 12 Mov

Weight:

4000KG

Roller Station:

14 Raws

Highlight:

C Channel Purlin Roll Forming Machine

U Channel Purlin Roll Forming Machine

Hydraulic Cutting purlin roll former

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

20 sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

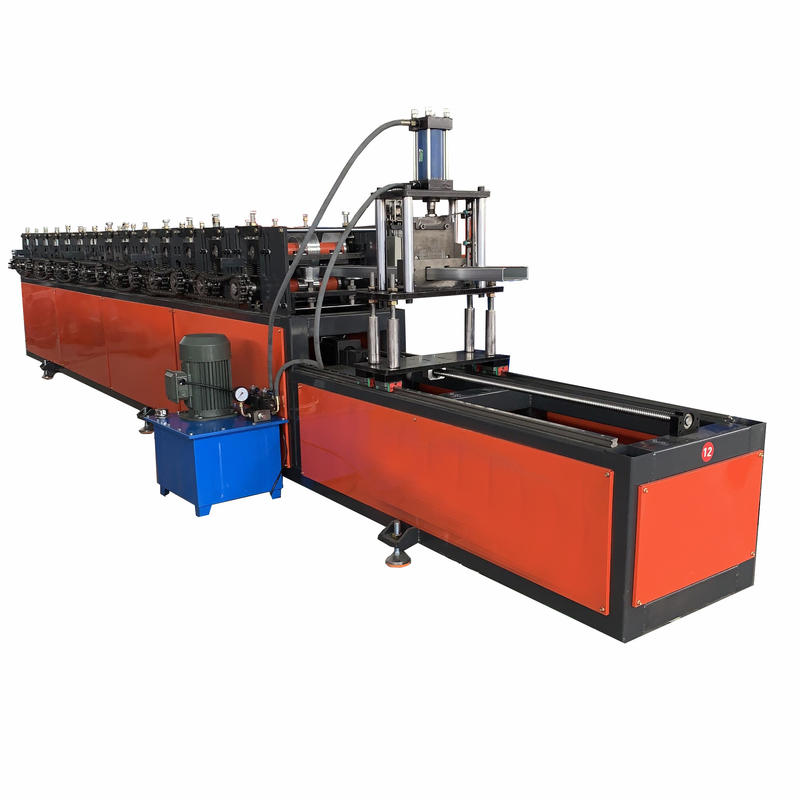

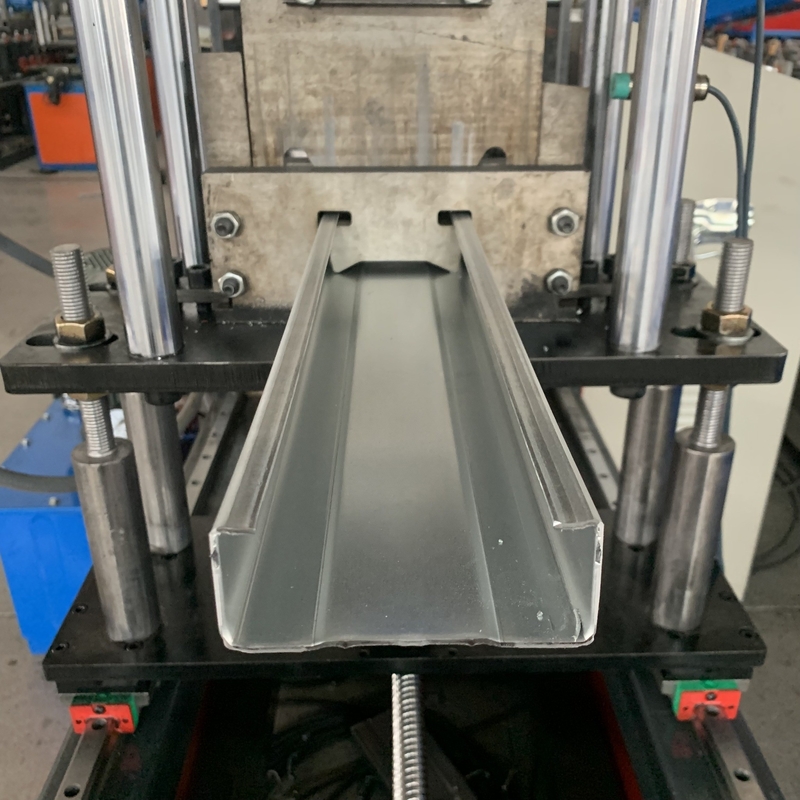

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting

Cold Steel C & U Channel Purlin Roll Forming Machine Hydraulic Cutting. The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.

This model is full automatic production. Especially, exchange the different sizes by computer control and more faster. Only 1-2
minutes can finished the changing size. This machine can be customized. Just send us your smaple, we will design and produce the machine for you.

You can automatically complete the molding process according to the given sizes. It is suitable for industrial and civilian buildings, warehouses, special buildings, large -span steel structured roofs, wall surfaces, and internal and external wall decorations. It has light quality, high -strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, life span The characteristics of long, exempt maintenance, have been widely promoted and applied to the color steel encirclement building system

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
main motor	7.5kw
Weight	4000kg
main shaft diameter	80mm
material thickness	1.2-2.5mm
Hydraulic Station Pressure	12.0 Mpa
Warranty of core components	1 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
