Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine

Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine
Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine

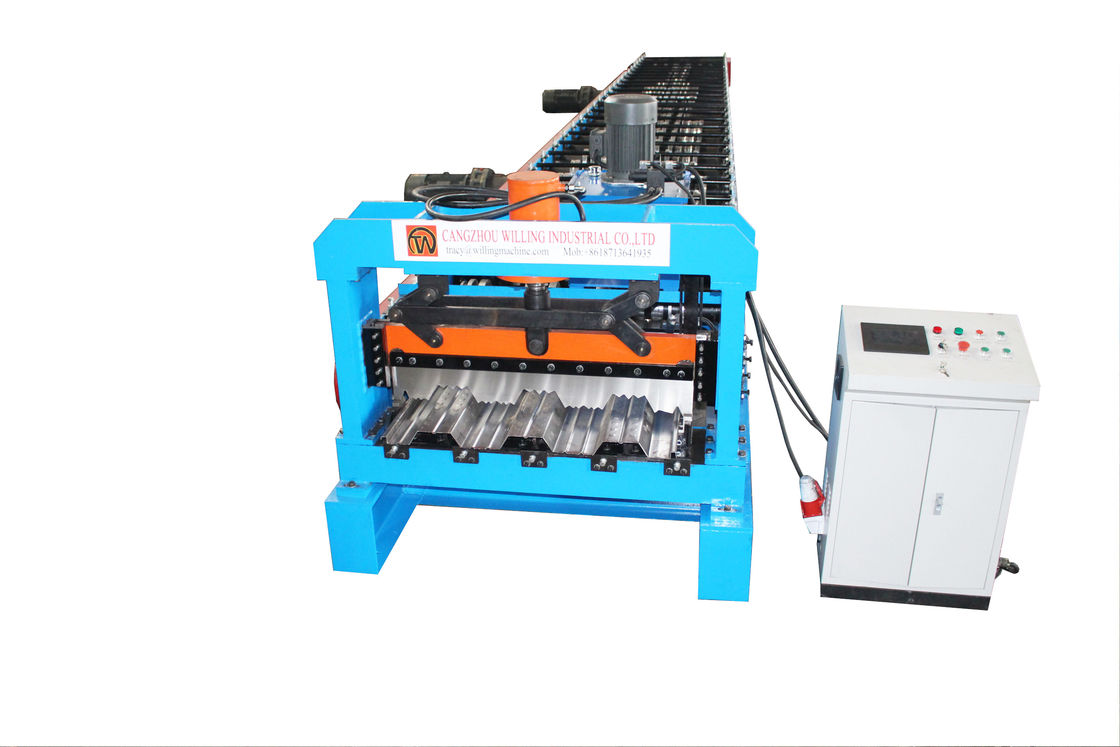

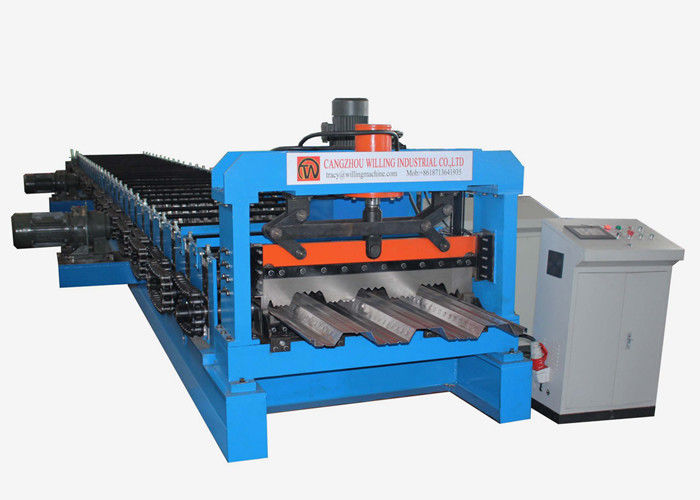

Large Image :  Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Steel Sheet Decking Floor Production Roll Forming Line Roller Stations: 45#steel Hard Chrome Coated
Warranty: 1 Year Cutting Type: Hydraulic Cutting
Production Capacity: 8-12m/min Formed Width: 700-1250mm
Marketing Type: Ordinary Product Core Components: Plc
High Light:

chain transport roll forming line

,

panasonic control roll forming line

,

roll forming line machine chain transport

Metal Steel Sheet Decking Floor Production Roll Forming Line

It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.

Specification


Diameter of roller Φ90mm
Middle plate 20mm
transport chain
Voltage 380V 60HZ 3 PH or customized by your request
Motor power 11kw+11kw
Pump station power 3kw/(5.5kw hydraulic motor)
Transducer power 11.5kw
Cutting system Hydraulic cutting by pillar type
Material of cutting Cr12
Control system PLC brand :Delta / Panasonic
Length error : ±1mm
work speed 8-12m/min





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
