Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

0.3mm steel tile forming machine

galvalume steel tile forming machine

0.3mm roof tile roll former

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Contact Us
Request A Quote
Product Details
Product Name:
Metal Roofing Tile Sheet Corrugating Sheet Roll Forming Machine Production Line
Raw Material:
Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm:
PLC
Rolling Thinckness::
0.3-0.8mm
Tile Type:
Roll Forming Machine/building Material Machinery
Warranty Of Core Components:
1 Year
Color:
As Per Customer Reqeust
Power:
4KW
Feeding Width:
1220mm
Machine Weight:
4 T
Highlight:

0.3mm steel tile forming machine

,

galvalume steel tile forming machine

,

0.3mm roof tile roll former

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C,T/T,D/A,D/P
Supply Ability
20 Sets Per Month
Product Description

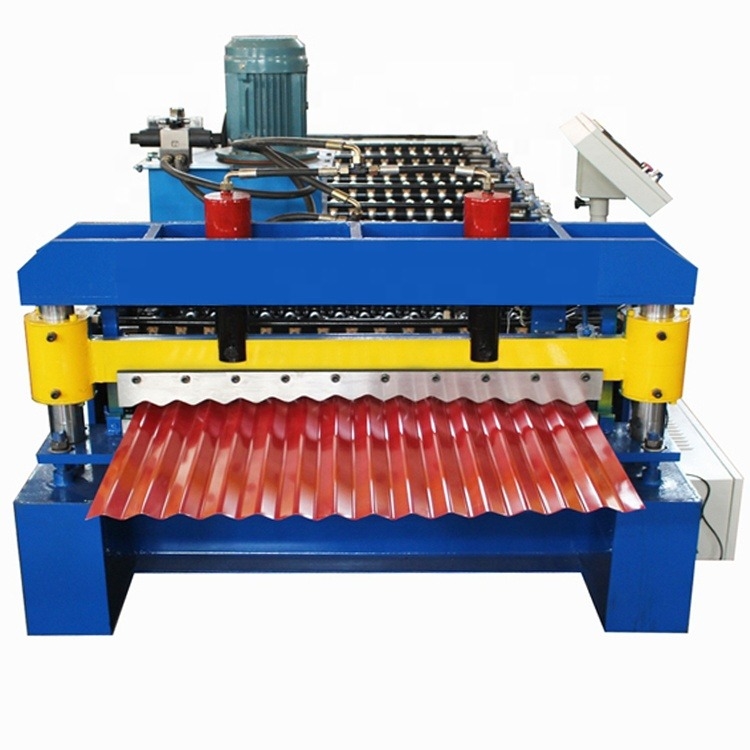

Corrugated Sheet Machine Corrugated Roofing Forming Machine

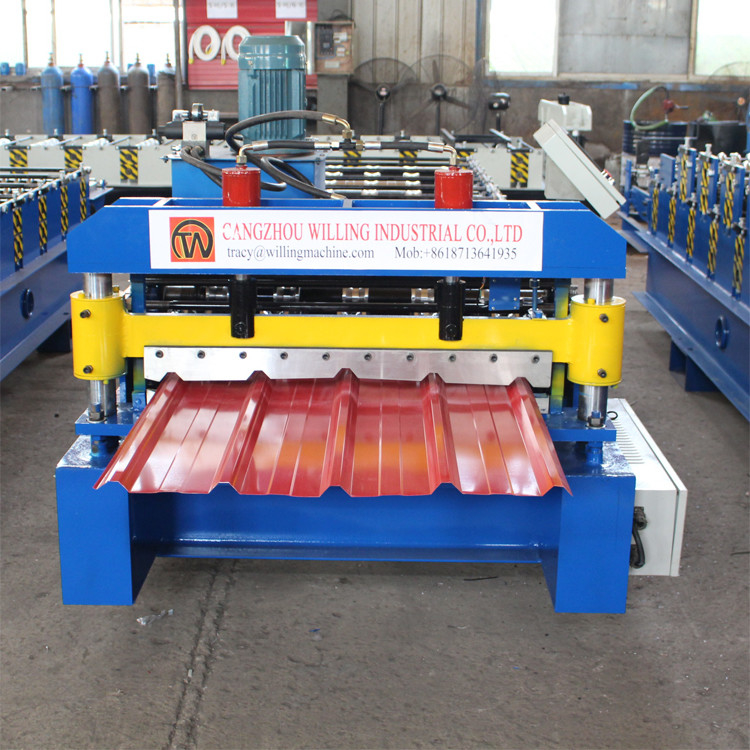

840 trapezoidal sheet roll forming machine popular sell in many countries. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.2-0.8 mm

The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.

Specification
No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Rolling thickness 0.2-0.8mm
3 Working Speed 15-20m/min ( not including the cutting time)
4 Roller Station 12 Raws
5 Dimension (L*W*H) 58000 mm*1200 mm*1100 mm
6 Machine Weight 4500 KG
7 Electrical Control System Delta PLC (can be customized)
8 Drive Motor Power 4KW
9 Hydraulic Station Power 4KW
10 Power Supply 380V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 1 inch
13 Material of Shaft 70 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard
Details Advantages:
  • More beautiful outlook, and color of machine. The inner using 300H frame, which can make sure machine more favorable for the machine using for long time.
  • We can customized all your demands for you, such as voltage, color, logo, inner wheels, frame, Plc.....
  • We have been export machine to many countries, and familiar to many countries demands and market, which can give you more favorable suggestions. And more easy for you import the machine.
Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine 0
