75mm Roller Shutter Door Roll Forming Machine Plc Control System

75mm Roller Shutter Door Roll Forming Machine Plc Control System

75mm roller shutter door roll forming machine

plc roller shutter door roll forming machine

ppgl roller shutter roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Contact Us
Request A Quote
75mm Roller Shutter Door Roll Forming Machine Plc Control System
75mm Roller Shutter Door Roll Forming Machine Plc Control System 75mm Roller Shutter Door Roll Forming Machine Plc Control System 75mm Roller Shutter Door Roll Forming Machine Plc Control System
Product Details
Product Name:
75mm Roller Shutter Door Lath Cold Roll Forming Machine PLC Control System
Core Components:
Motor, Bearing, Gear, Pump, Engine, PLC
Production Capacity:
8-12m/min
Rolling Thinckness:
0.8---1.2 Mm
Weight:
5T
Condition:
New
Voltage:
380V
Shaft Material:
#45 Steel
Highlight:

75mm roller shutter door roll forming machine

,

plc roller shutter door roll forming machine

,

ppgl roller shutter roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Customized High Speed PU Door Roller Shutter Roll Forming Machine online Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Get Best Price
Good price 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size online Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Get Best Price
Good price 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System online Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Get Best Price
Good price PLC Control System 3T Shutter Door Roll Forming Machine For Doors online Video

PLC Control System 3T Shutter Door Roll Forming Machine For Doors

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

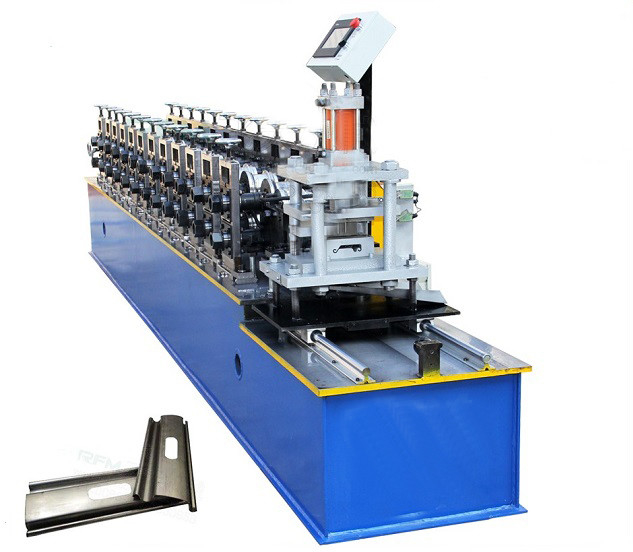

75mm Roller Shutter Door Lath Cold Roll Forming Machine PLC Control System



Roller shutter door roll forming machine is the machines for making shutter door pieces, then several door pieces connected together by door shutter core and linked by rope, the shutter door can be rolled manual or automatic control by electric button. This shutter doors can be installed for steel construction factory, car garage, shop doors and storage doors.





Specification









main forming machine

Control system Automatic cutting controlled by PLC
Material thickness 0.8---1.2mm
Material hardness 195 mpa---350 mpa
Step length 150mm---380mm(adjustable)
Forming speed 8-12m/min
Shaft material 45# steel
Working speed 3-5.5m/min
Length of the main part about 12000*1700*1500mm
Number of rollers 20 rollers
Voltage 380V-50HZ-3P(as required)
Roller fixer middle plate
Frame 400H steel
Material of rollers 45#steel, surface hard chromium plating.





75mm Roller Shutter Door Roll Forming Machine Plc Control System 0

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
